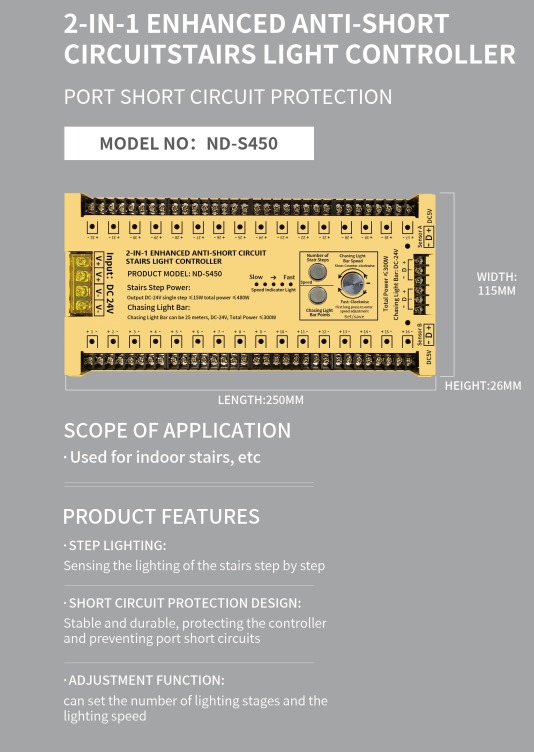

TWO IN ONE ENHANCED ANTI SHORT CIRCUIT STAIRS LIGHT CONTROLLER(model s450)
$58.00
Stair Light Control System
Scope of Application:
Designed for indoor staircases, enhancing safety and ambiance with intelligent lighting control.
Features:
-
Step Lighting: Automatically illuminates each step in sequence as a person uses the stairs, providing a visually appealing and safe experience.
-
Motion Sensing: Detects movement and activates the lights step by step.
Short Circuit Protection Design:
Built with a durable protection mechanism that safeguards the controller, preventing damage from short circuits at the ports.
Adjustment Functions:
-
Lighting Pixels: Allows customization of the number of lights or steps to be activated.
-
Lighting Speed: Enables users to set the speed of light transitions according to their preference.
Product Specifications
| Model Number | ND-S450 |
|---|---|
| Input Voltage | DC 24W |
| Total Power | Max 480W |
| Stairs Step power Consumption | 15W |
| Output Line Length | 5 meters |

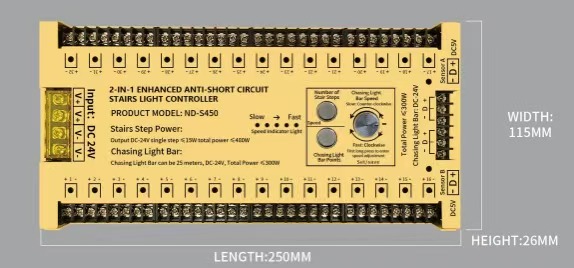

| Product Size | 250mm x 115mm x 26mm |
| Output Voltage | DC 24W |
| Certification | CE |
| Number of ports | 32 |
| Sensors | 2 (DC-5V) |
| Batteries | No |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products
Intelligent Motion Sensor LED Stair Light Kit(model GY220B)
Stair Light Control System
What's in the box 1pc LED Power-free Controller 1 roll 10 meters long Water Flowing effect Strip Light 2pcs PIR Sensor 2pc Sensor Extension CableNew Products: Intelligent stair light controller with motion sensor Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient. Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working) Output: DC 24V Max Power: 400W Product size: 223*60*27mm Sensor A: Used for Upstairs Sensor B: Used for Downstairs 2pcs Extension Cable Length: 5Meters ( Sensor to controller)
Function:
1. Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable) 2. Brightness & Speed is adjustable 3. Pixel Number is adjustable, Max. up to 1024 Pixels. Strip Length Max. up to 42 Meters.
Compatible SPI Led Strip Light:
Working Voltage: 24V LED Type: COB Chips Qty: 360 Chips/meter Length: 2X5M/5M/10M/15M/2X10M Color: Warm White 3000K, Natural White 4000K, Cool White 6000K PCB Width: 10mm Strip Wire: Red Wire--- Postive +24V Green Wire ---- GND signal wire White Wire ---- Negative -24V
NOTE:
You must read the User Manual for Settings when testing. IF not, Only half led strip working. THAT IS NOT Quality Problem!!! Step A: Set Pixel Number, make sure all diodes are working for the whole LED strip. Step B: Set Strp Order by Pressing RGB/RBG button
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 3 IN 1 – 3 Wire mainline version(model T6)
Stair Light Control System
Scope of Application:
Perfect for indoor installations such as stairs, handrails, and passageways, providing automatic lighting for enhanced safety and aesthetics.
Features:
Wiring Made Simple:
The system eliminates complex wiring requirements. A single 3-wire mainline connects all step strip lights, streamlining the installation process.
Built-in Power Supply:
Designed with convenience in mind, the power supply and controller are integrated into one unit. It connects directly to 220V, making the setup easier and more efficient.
Light Chasing Function:
Equipped with motion sensing, the lights flow like water in a running and chasing pattern, creating an elegant and responsive visual effect as you move.
PROGRAMMABLE STAIR LIGHT CONTROLLER(model LTK01)
Programmable Stair Light Controller
Scope of Application:
Designed for indoor staircases, steps, and similar applications.
Features:
- Controller equipped with DuPont interface. - Supports up to 32 steps, compatible with 12/24V LED systems.
Adjustment Functions:
- Customizable number of illuminated steps. - Adjustable lighting speed.
Product Parameters - Product Name: LED Stair Sensing Control Device - Model**: ND-LTK01 - Input Voltage: DC12V/24V - Output Power: ≤500W (Max) - LED Strip Ports: 32 - Sensors: 2 (A/B) - Product Dimensions: 177*70*19mm Performance as stable as your lifelong partner, rock-solid. Suitable for both export and domestic markets.
PLC INTELLIGENT STAIRS LIGHT CONTROL SYSTEM (Model 007)
- Used for indoor stairs, handrails, or passageways, etc.
- Can set the length/chasing speed/brightness
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-1T6
- Light Strip Options: Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for dynamic lighting.
- Adjustment Features: Allows customization of length, chasing speed, brightness, and dual-color settings for the chasing strip light.
- Light Tracing Function: Senses motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
3 COLOR-TEMP FULL BRIGHT STAIR LIGHT CONTROLLER(model QL2)
Stair Light Control System
⚠️ WARNING: Do not use single-color strip lights. Doing so may cause the controller to burn out!
Scope of Application:
Ideal for indoor use on stairs, handrails, passageways, and similar areas requiring automatic lighting.
Features:
Simplified Wiring:
The system eliminates the need for complicated wiring. Only one 3-wire main line is needed to connect all stair step strip lights. Alternatively, some configurations may use a 2-wire main line for simpler setups.
Short Circuit Protection Design:
Built-in protection ensures the controller remains stable and durable, safeguarding the system from port short circuits and extending product life.
Adjustment Function:
Customize your lighting with ease — adjust the lighting delay time and brightness. When using a two-color light strip, you can also switch between color temperatures, allowing for flexible ambiance control.
