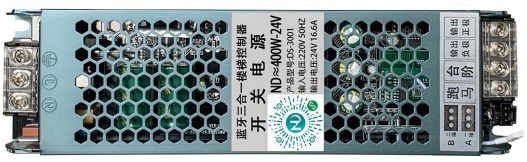

THREE-IN-ONE UPGRADE BUS STAIR CONTROL SYSTEM (Model 3001)
$180.00
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
Product Parameters:
-
Input Voltage: AC 220V
-
Output Voltage: 24V 16.6A
-
Step Power Output:
➔ Single channel 24V = 30W -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 units
-
Product Size:
➔ 221mm × 60mm × 27mm
-
Product Features:
-

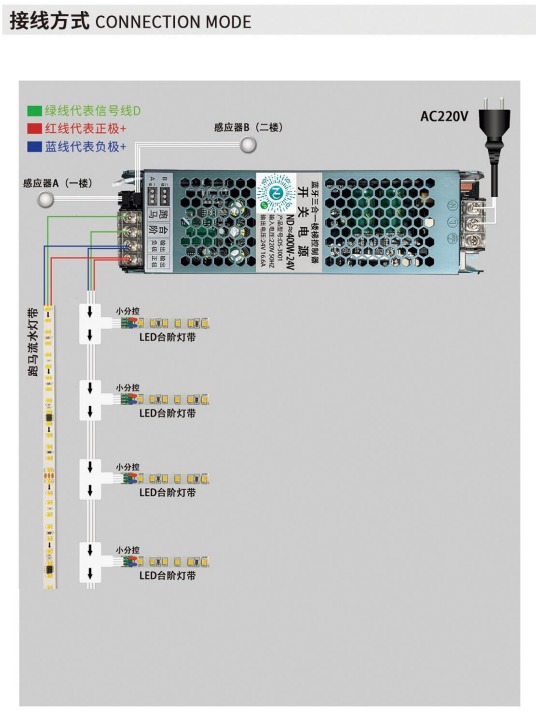

Bus Wiring:
➔ Only one main bus line required; branch lines plug directly into stair lights — simple and efficient wiring. -
Built-in Power Supply:
➔ Transformer and controller are integrated.
➔ Direct connection to input voltage (AC220V) — easier and faster installation. -
Stepping Function:
➔ Lights illuminate one step at a time when people are detected. -
Chasing Light (Marquee) Function:
➔ Light bar creates a flowing light effect when sensing movement. -
Bluetooth Control:
➔ Settings adjustable via mobile phone using a WeChat mini-program. -
Support Capabilities:
➔ Stair lights: Single-channel 30W
➔ 1-channel chasing light (marquee)
➔ Compatible with 24V-LED
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products
PROGRAMMABLE STAIR LIGHT CONTROLLER(model LTK01)
Programmable Stair Light Controller
Scope of Application:
Designed for indoor staircases, steps, and similar applications.
Features:
- Controller equipped with DuPont interface. - Supports up to 32 steps, compatible with 12/24V LED systems.
Adjustment Functions:
- Customizable number of illuminated steps. - Adjustable lighting speed.
Product Parameters - Product Name: LED Stair Sensing Control Device - Model**: ND-LTK01 - Input Voltage: DC12V/24V - Output Power: ≤500W (Max) - LED Strip Ports: 32 - Sensors: 2 (A/B) - Product Dimensions: 177*70*19mm Performance as stable as your lifelong partner, rock-solid. Suitable for both export and domestic markets.
PLC INTELLIGENT STAIRS LIGHT CONTROL SYSTEM (Model 007)
- Used for indoor stairs, handrails, or passageways, etc.
- Can set the length/chasing speed/brightness
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
FULL BRIGHT CLASSISC STAIR CONTROLLER: 2 Line Version (model QL1)
Features:
Step Lighting:
Upon motion detection, all stair steps illuminate simultaneously, providing clear visibility and enhancing nighttime safety.
Simplified Wiring:
Say goodbye to complicated installations. The system requires only a single 2-wire main line, making setup easier and more efficient.
Light Chasing Function:
With motion sensing, the side strip lights create a flowing effect—lighting up step-by-step in a running and chasing pattern, delivering a visually captivating and modern touch to your stairs.
TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
TWO-IN-ONE STAIR LIGHT CONTROL SYSTEM (Model 2001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
⚙️ Product Parameters:
-
Power Voltage: DC 12V / 24V
-
Controllable Steps: 32 channels
-
Step Power Output:
➔ 12V = 24W per step
➔ 24V = 30W per step -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 pieces
-
Product Size:
➔ 114mm × 96mm × 26mm

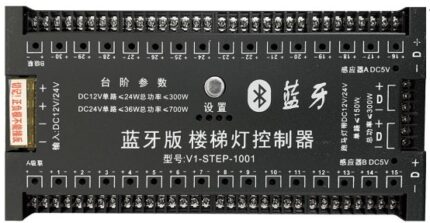

TWO-IN-ONE BLUETOOTH STAIR LAMP CONTROL SYSTEM (Model1001)
