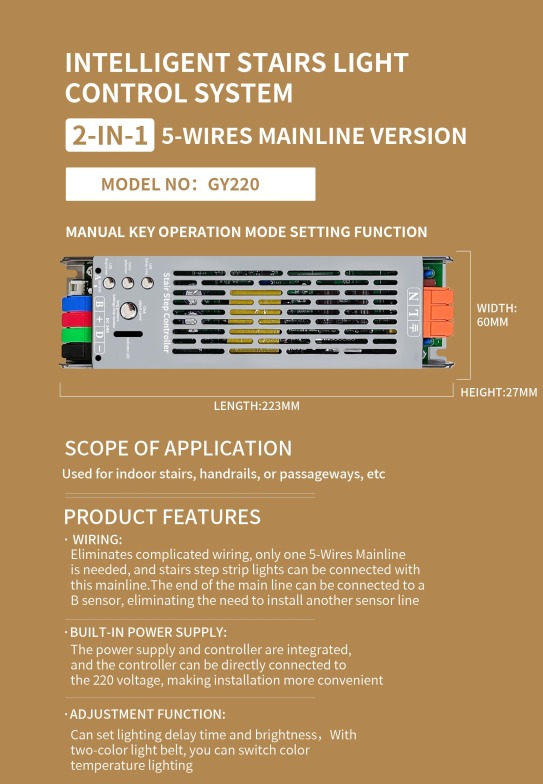

INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2 IN 1 – 5 Wires mainline version(model GY220)
$35.00
Stair Light Control System
Scope of Application
Ideal for indoor use on stairs, handrails, and passageways, providing smart, responsive, and visually appealing lighting.
Features
Simplified Wiring
Designed to reduce installation complexity — only one 3-wire mainline is required, allowing easy connection of stair step strip lights without the need for intricate cabling.
Built-in Power Supply
The controller and power supply are integrated into a single unit. It connects directly to 220V, ensuring a faster and cleaner installation process.
Advanced Light Chasing Function
This system allows customization of lighting delay, timing, and brightness levels. Paired with a dual-color light strip, it offers the ability to switch between different color temperatures, enhancing both functionality and ambiance.

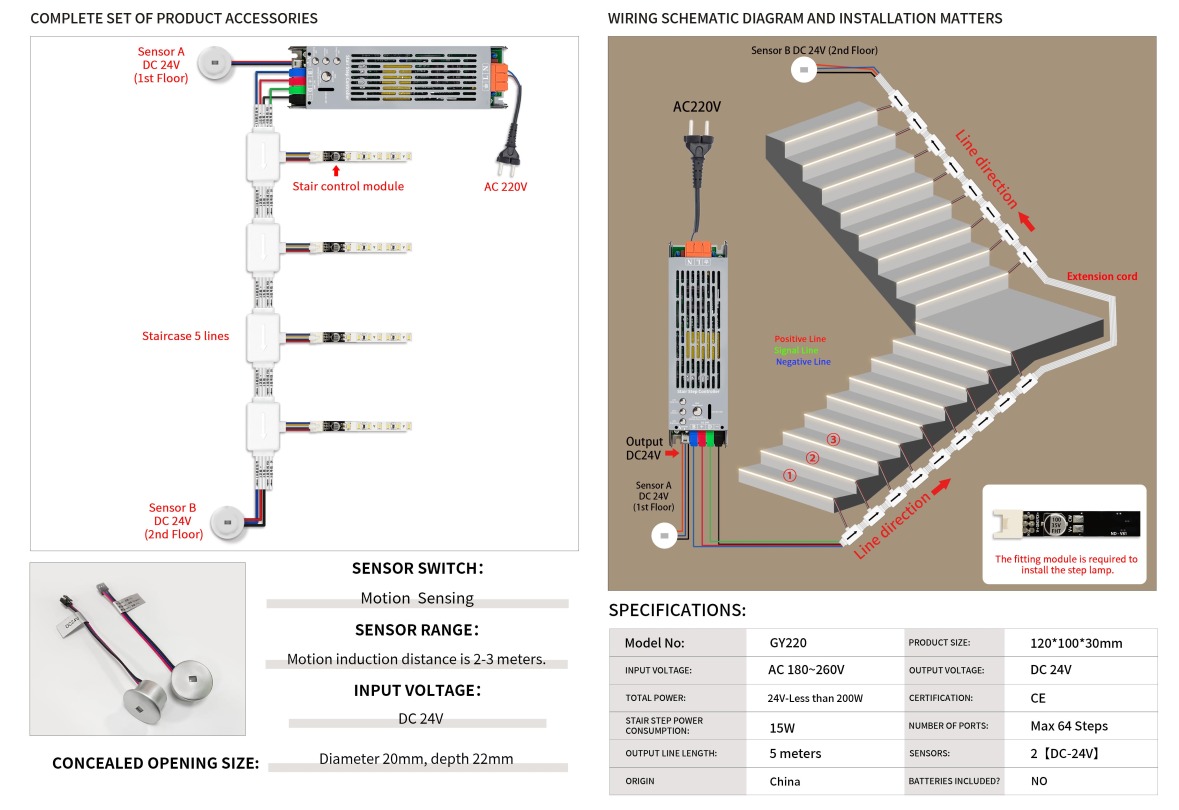

Product Specifications
| Model Number | GY220 |
|---|---|
| Input Voltage | AC 180-260V |
| Power | 24V-Less than 200V |
| Single Stairs Step power Consumption | 15W |
| Output Line Length | 5 meters |
| Product Size | 120mm x 100mm x 30mm |
| Output Voltage | DC 24W |
| Certification | CE |
| Number of Ports | Max 64 steps |
| Sensors | 2 (DC-5V) |
| Batteries | No |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products

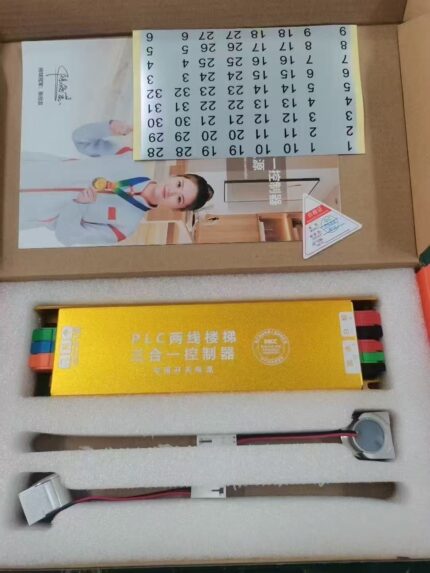

INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 3 IN 1 – 3 Wire mainline version(model T6)
Stair Light Control System
Scope of Application:
Perfect for indoor installations such as stairs, handrails, and passageways, providing automatic lighting for enhanced safety and aesthetics.
Features:
Wiring Made Simple:
The system eliminates complex wiring requirements. A single 3-wire mainline connects all step strip lights, streamlining the installation process.
Built-in Power Supply:
Designed with convenience in mind, the power supply and controller are integrated into one unit. It connects directly to 220V, making the setup easier and more efficient.
Light Chasing Function:
Equipped with motion sensing, the lights flow like water in a running and chasing pattern, creating an elegant and responsive visual effect as you move.
PROGRAMMABLE STAIR LIGHT CONTROLLER(model LTK01)
Programmable Stair Light Controller
Scope of Application:
Designed for indoor staircases, steps, and similar applications.
Features:
- Controller equipped with DuPont interface. - Supports up to 32 steps, compatible with 12/24V LED systems.
Adjustment Functions:
- Customizable number of illuminated steps. - Adjustable lighting speed.
Product Parameters - Product Name: LED Stair Sensing Control Device - Model**: ND-LTK01 - Input Voltage: DC12V/24V - Output Power: ≤500W (Max) - LED Strip Ports: 32 - Sensors: 2 (A/B) - Product Dimensions: 177*70*19mm Performance as stable as your lifelong partner, rock-solid. Suitable for both export and domestic markets.
TWO IN ONE ENHANCED ANTI SHORT CIRCUIT STAIRS LIGHT CONTROLLER(model s450)
Stair Light Control System
Scope of Application:
Designed for indoor staircases, enhancing safety and ambiance with intelligent lighting control.
Features:
-
Step Lighting: Automatically illuminates each step in sequence as a person uses the stairs, providing a visually appealing and safe experience.
-
Motion Sensing: Detects movement and activates the lights step by step.
Short Circuit Protection Design:
Built with a durable protection mechanism that safeguards the controller, preventing damage from short circuits at the ports.
Adjustment Functions:
-
Lighting Pixels: Allows customization of the number of lights or steps to be activated.
-
Lighting Speed: Enables users to set the speed of light transitions according to their preference.
THREE-IN-ONE UPGRADE STAIR CONTROL SYSTEM (Model 4001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
📱 Adjustable Settings via APP:
-
Adjust light brightness
-
Adjust number of steps
-
Adjust length of the light chaser
-
Adjust light bar speed
-
Set automatic light-off time
-
Enable fixed timer operation
🎨 Lighting Modes Available:
-
Flowing Light Mode
-
Step-by-Step Light Mode
-
Full Light Mode
-
Follow Light Mode
-
Auto Mode
-
Cyclic Light Mode
⚙️ Product Parameters:
-
Input Voltage: AC220V
-
Output Voltage: 24V 16.6A
-
Step Power: Single channel 24V = 36W
-
Chasing Light (Flow) Capacity: Up to 1200 pixels
-
Sensor Heads: 2 units (24V)
-
TWO-IN-ONE STAIR LIGHT CONTROL SYSTEM (Model 2001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
⚙️ Product Parameters:
-
Power Voltage: DC 12V / 24V
-
Controllable Steps: 32 channels
-
Step Power Output:
➔ 12V = 24W per step
➔ 24V = 30W per step -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 pieces
-
Product Size:
➔ 114mm × 96mm × 26mm
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-VO2
Scope of Application:
Ideal for indoor stairs, handrails, passageways, and more.
Features:
-
Light Strip Options:
Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for versatile lighting customization. -
Adjustment Features:
Customize your lighting with adjustable length, chasing speed, brightness, and dual-color settings of the chasing strip light. -
Light Tracing Function:
The system detects motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2-IN-1 | 2 Wires mainline version(model GY220A)
Stair Light Control System
Scope of Application
Perfectly suited for indoor stairs, handrails, or passageways, delivering safe, stylish, and automated lighting.
Features
Wiring Simplification
No need for complex connections — requires only a single 3-wire mainline, allowing for easy integration of step strip lights.
Built-in Power Supply
Features an integrated power supply and controller, enabling direct 220V connection. This design ensures a neat and convenient installation process.
Adjustment Function
Customize your lighting experience by setting the number of lighting pixels and adjusting the lighting speed to match your desired ambiance or functionality.
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM(model GY220B)
- Used for indoor stairs, handrails, or passageways, etc.
- Can set the length/chasing speed/brightness
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
