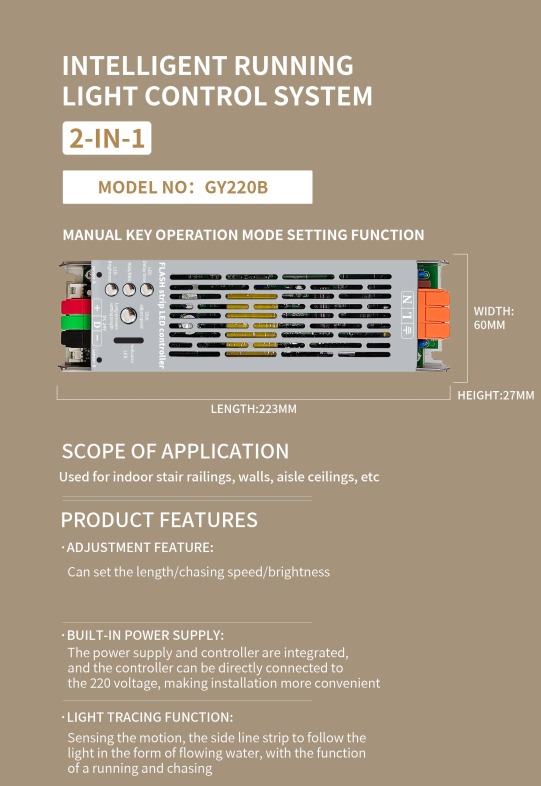

INTELLIGENT STAIRS LIGHT CONTROL SYSTEM(model GY220B)
¥218.00
Stair light Control system
SCOPE OF APPLICATION
- Used for indoor stairs, handrails, or passageways, etc.
FEATURES

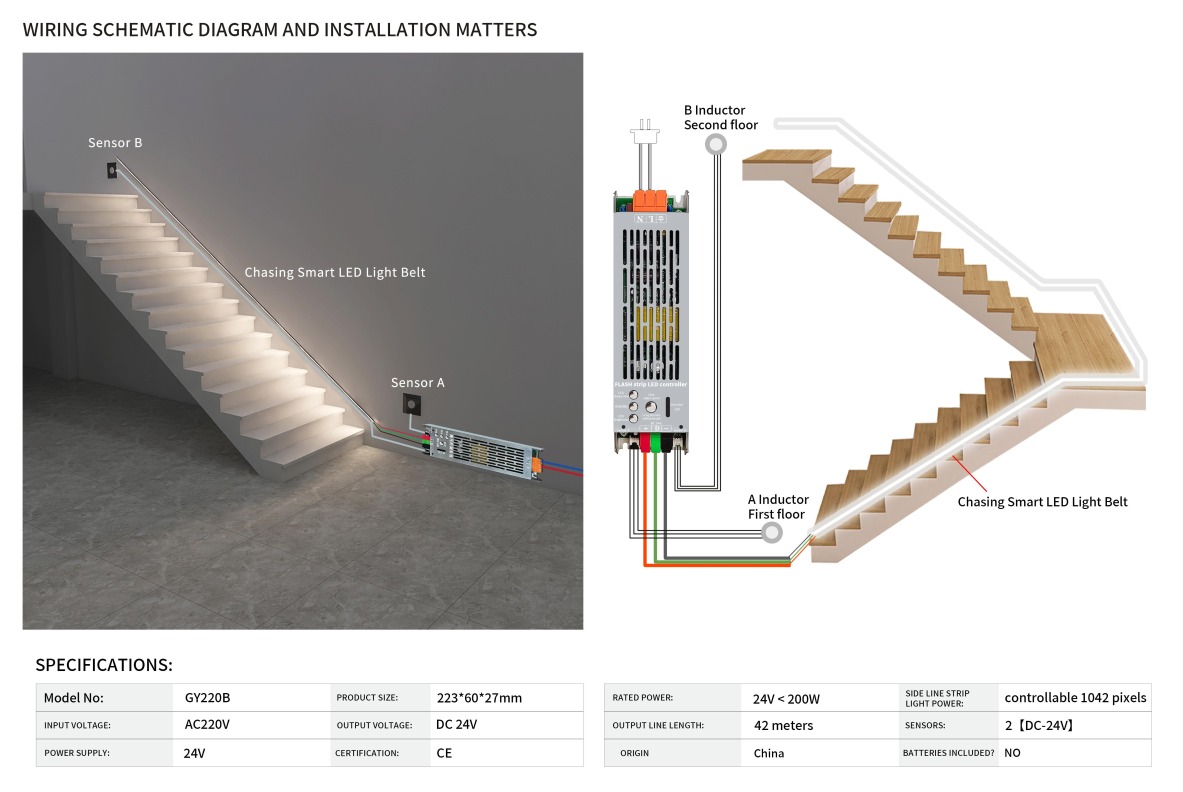

WIRING
- Can set the length/chasing speed/brightness
BUILT IN POWER SUPPLY
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
LIGHT TRACING FUNCTION
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
Product Specifications
| Model Number | GY220B |
|---|---|
| Input Voltage | AC 220V |
| Power | 24V |
| Rated Power | 24V<200W |
| Output Line Length | 42 meters |
| Product Size | 223mm x 60mm x 27mm |
| Output Voltage | DC 24W |
| Certification | CE |
| Side Line Strip Light Power | Controllable 1024 pixels |
| Sensors | 2 (DC-5V) |
| Batteries Included | No |
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products
PROGRAMMABLE STAIR LIGHT CONTROLLER(model 1002)
Programmable Stair Light Controller
Scope of Application:
Ideal for indoor staircases and similar step-lighting installations.
Features:
-
Step-by-Step Lighting: Automatically illuminates each stair step as you move.
-
Motion Sensing: Activates lighting in sequence based on movement.
Adjustment Functions:
-
Lighting Pixels: Adjustable number of illuminated steps.
-
Lighting Speed: Customizable speed for the step lighting effect.
PROGRAMMABLE STAIR LIGHT CONTROLLER(model LTK01)
Programmable Stair Light Controller
Scope of Application:
Designed for indoor staircases, steps, and similar applications.
Features:
- Controller equipped with DuPont interface. - Supports up to 32 steps, compatible with 12/24V LED systems.
Adjustment Functions:
- Customizable number of illuminated steps. - Adjustable lighting speed.
Product Parameters - Product Name: LED Stair Sensing Control Device - Model**: ND-LTK01 - Input Voltage: DC12V/24V - Output Power: ≤500W (Max) - LED Strip Ports: 32 - Sensors: 2 (A/B) - Product Dimensions: 177*70*19mm Performance as stable as your lifelong partner, rock-solid. Suitable for both export and domestic markets.
PLC INTELLIGENT STAIRS LIGHT CONTROL SYSTEM (Model 007)
- Used for indoor stairs, handrails, or passageways, etc.
- Can set the length/chasing speed/brightness
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-VO2
Scope of Application:
Ideal for indoor stairs, handrails, passageways, and more.
Features:
-
Light Strip Options:
Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for versatile lighting customization. -
Adjustment Features:
Customize your lighting with adjustable length, chasing speed, brightness, and dual-color settings of the chasing strip light. -
Light Tracing Function:
The system detects motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-1T6
- Light Strip Options: Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for dynamic lighting.
- Adjustment Features: Allows customization of length, chasing speed, brightness, and dual-color settings for the chasing strip light.
- Light Tracing Function: Senses motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM
THE MOBILE APP CAN SET MULTIPLE LIGHTING MODE
Scope of Application: Perfect for indoor stairs, handrails, passageways, and more. Features:- Light Strip Options: Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for versatile lighting options.
- Adjustment Features: Customize your lighting experience by adjusting the length, chasing speed, brightness, and dual-color settings of the chasing strip light.
- Light Tracing Function: The system senses motion and activates the side strip light to follow the movement, creating a flowing water-like effect with running and chasing light patterns.
This version highlights the key features in a clean and professional manner. Let me know if you need further adjustments!
Reviews
There are no reviews yet.
