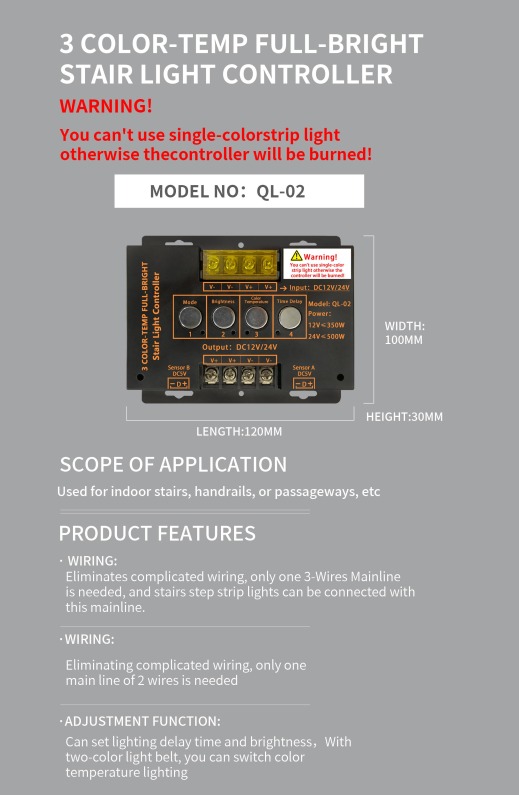

3 COLOR-TEMP FULL BRIGHT STAIR LIGHT CONTROLLER(model QL2)
$35.00
Stair Light Control System
⚠️ WARNING: Do not use single-color strip lights. Doing so may cause the controller to burn out!
Scope of Application:
Ideal for indoor use on stairs, handrails, passageways, and similar areas requiring automatic lighting.
Features:
Simplified Wiring:
The system eliminates the need for complicated wiring. Only one 3-wire main line is needed to connect all stair step strip lights. Alternatively, some configurations may use a 2-wire main line for simpler setups.
Short Circuit Protection Design:
Built-in protection ensures the controller remains stable and durable, safeguarding the system from port short circuits and extending product life.
Adjustment Function:
Customize your lighting with ease — adjust the lighting delay time and brightness. When using a two-color light strip, you can also switch between color temperatures, allowing for flexible ambiance control.

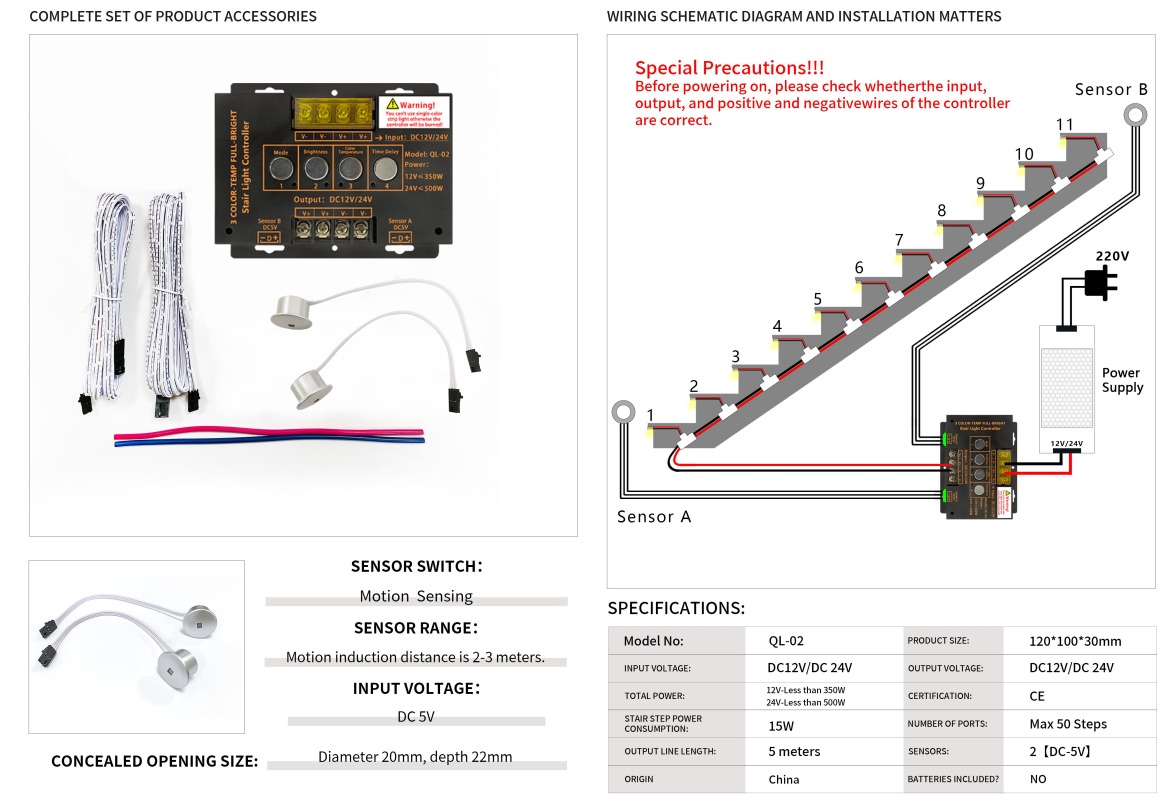

Precaution:
Before powering on, please check whether the input, output and positive and negative wires of the controller are correct
Product Specifications
| Model Number | QL-02 |
|---|---|
| Input Voltage | DC 12V/ 24V |
| Total Power | 12V-Less than 350W
24V-Less than 500W |
| Stairs Step power Consumption | 15W |
| Output Line Length | 5 meters |
| Product Size | 120mm x 100mm x 30mm |
| Output Voltage | DC 12/ 24W |
| Certification | CE |
| Number of ports | Max 50 Steps |
| Sensors | 2 (DC-5V) |
| Batteries | No |
