TWO-IN-ONE STAIR LIGHT CONTROL SYSTEM (Model 2001)
$178.00
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
⚙️ Product Parameters:
-
Power Voltage: DC 12V / 24V
-
Controllable Steps: 32 channels
-
Step Power Output:
➔ 12V = 24W per step
➔ 24V = 30W per step -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 pieces
-
Product Size:
➔ 114mm × 96mm × 26mm
Product Features:
-

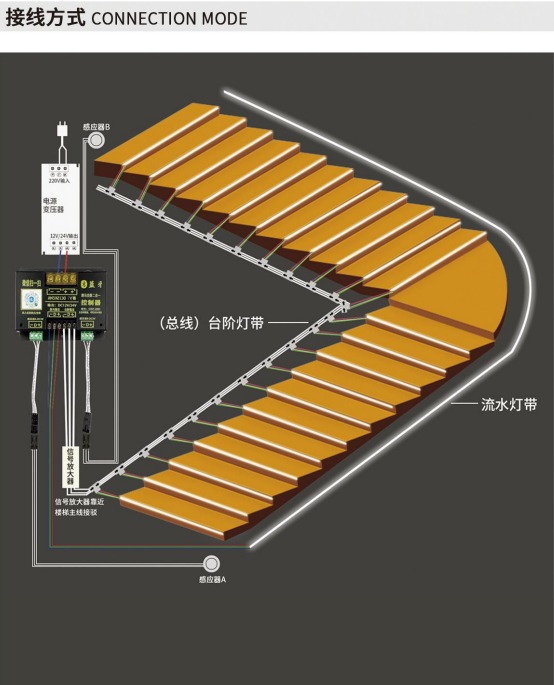

Bus Wiring:
➔ Only one bus line needed. Small branch lines connect directly to stair lights — no complicated wiring! -
Stepping Function:
➔ Stair lights illuminate step-by-step when people are detected. -
Chasing Light (Marquee) Function:
➔ Light bars create a smooth, flowing light effect upon motion detection. -
Bluetooth Control:
➔ Mobile phone control and adjustment via WeChat mini-program. -
Support Capabilities:
➔ Controls up to 32 steps and 1 marquee light.
➔ Compatible with 12V and 24V LED lighting.
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
