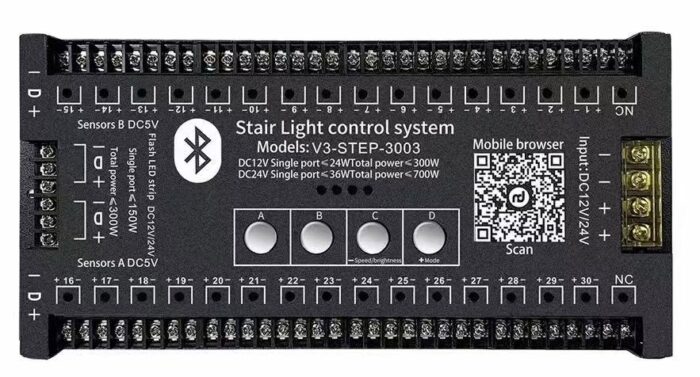

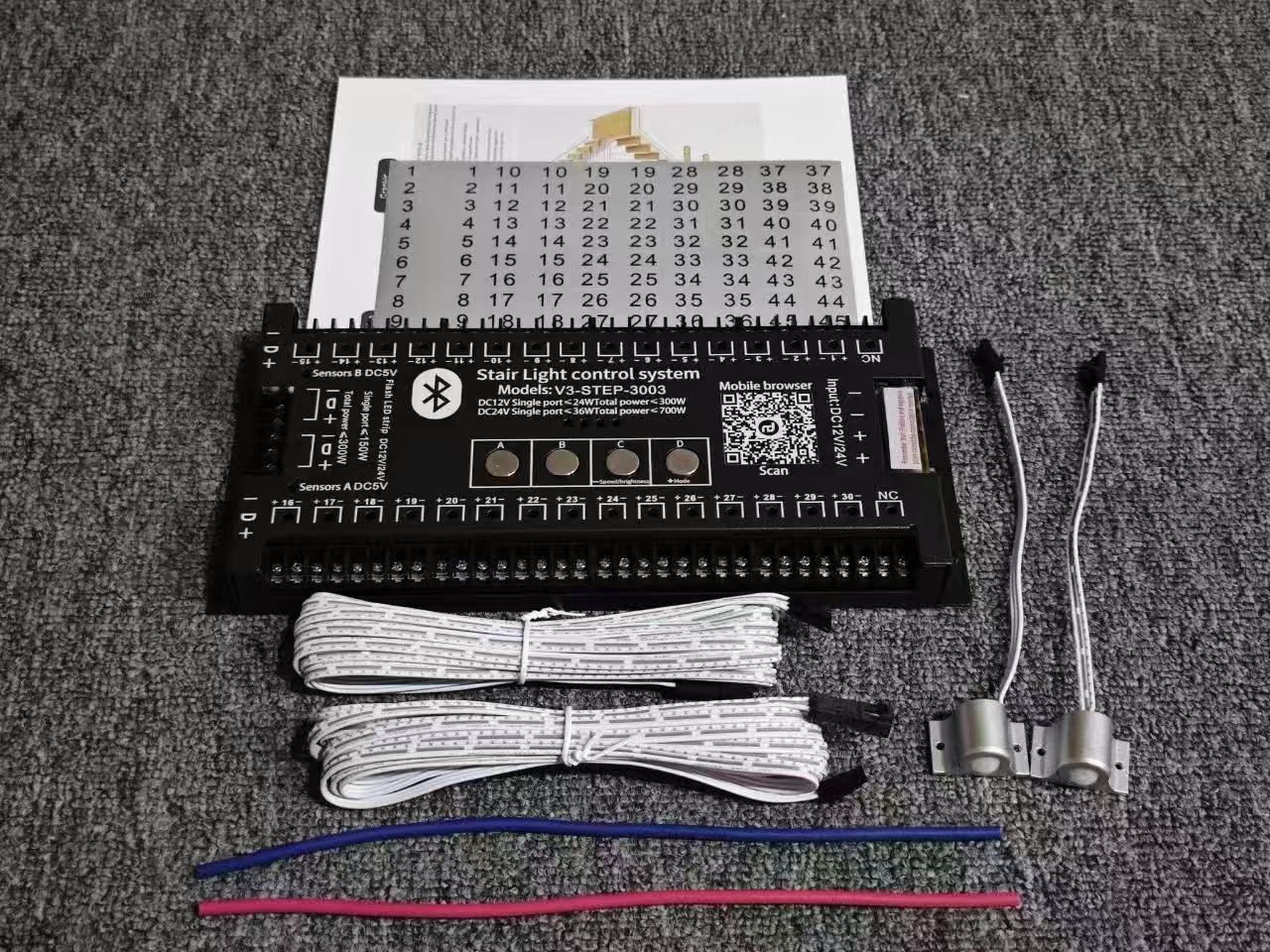

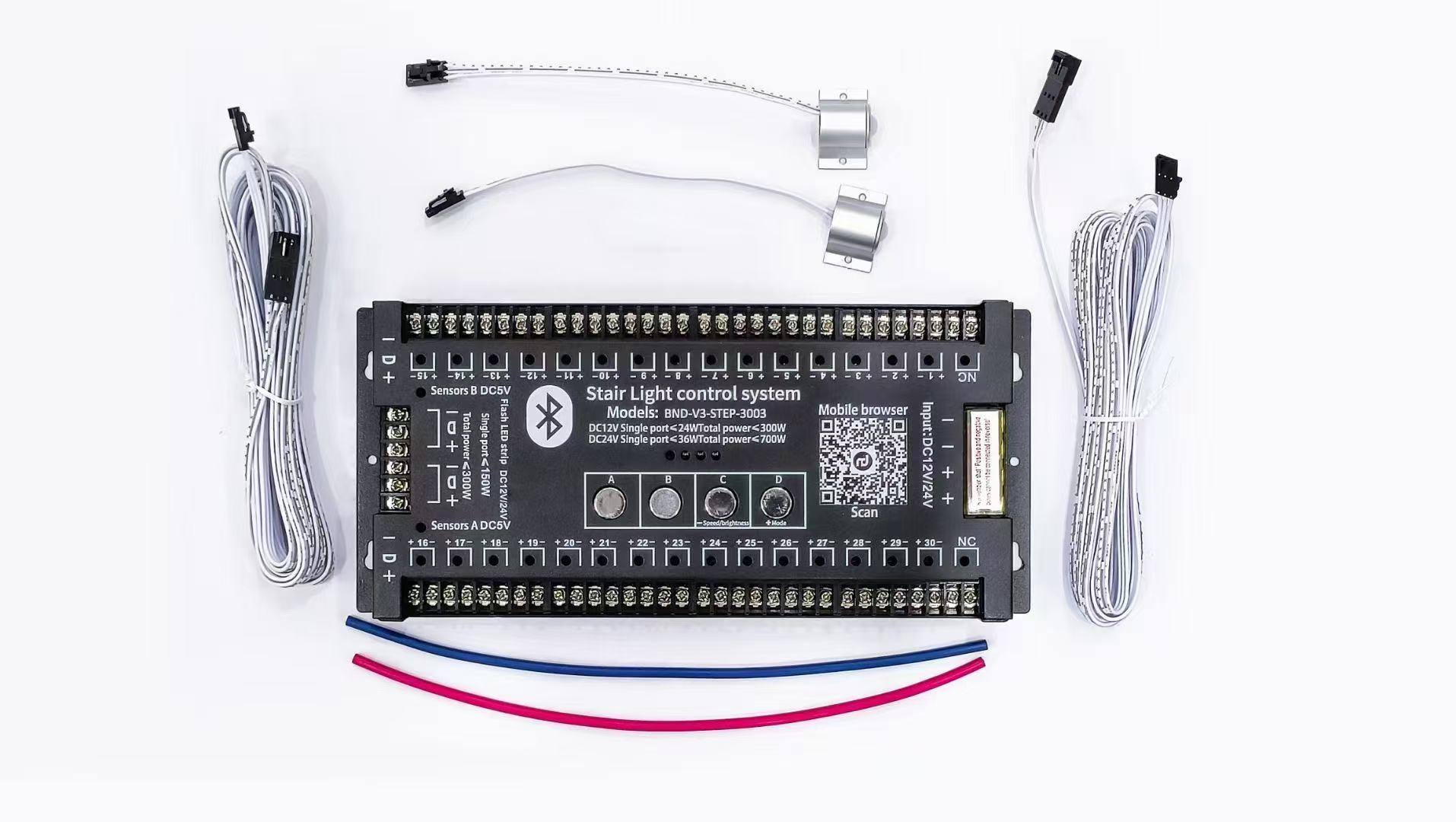

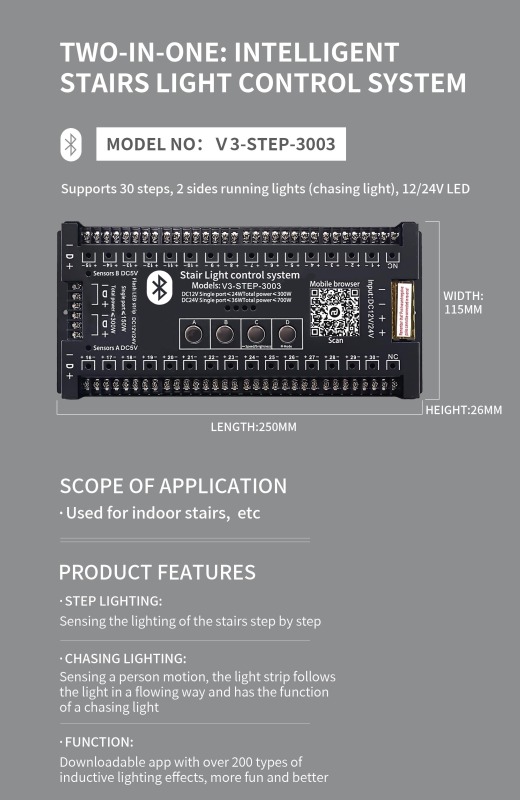

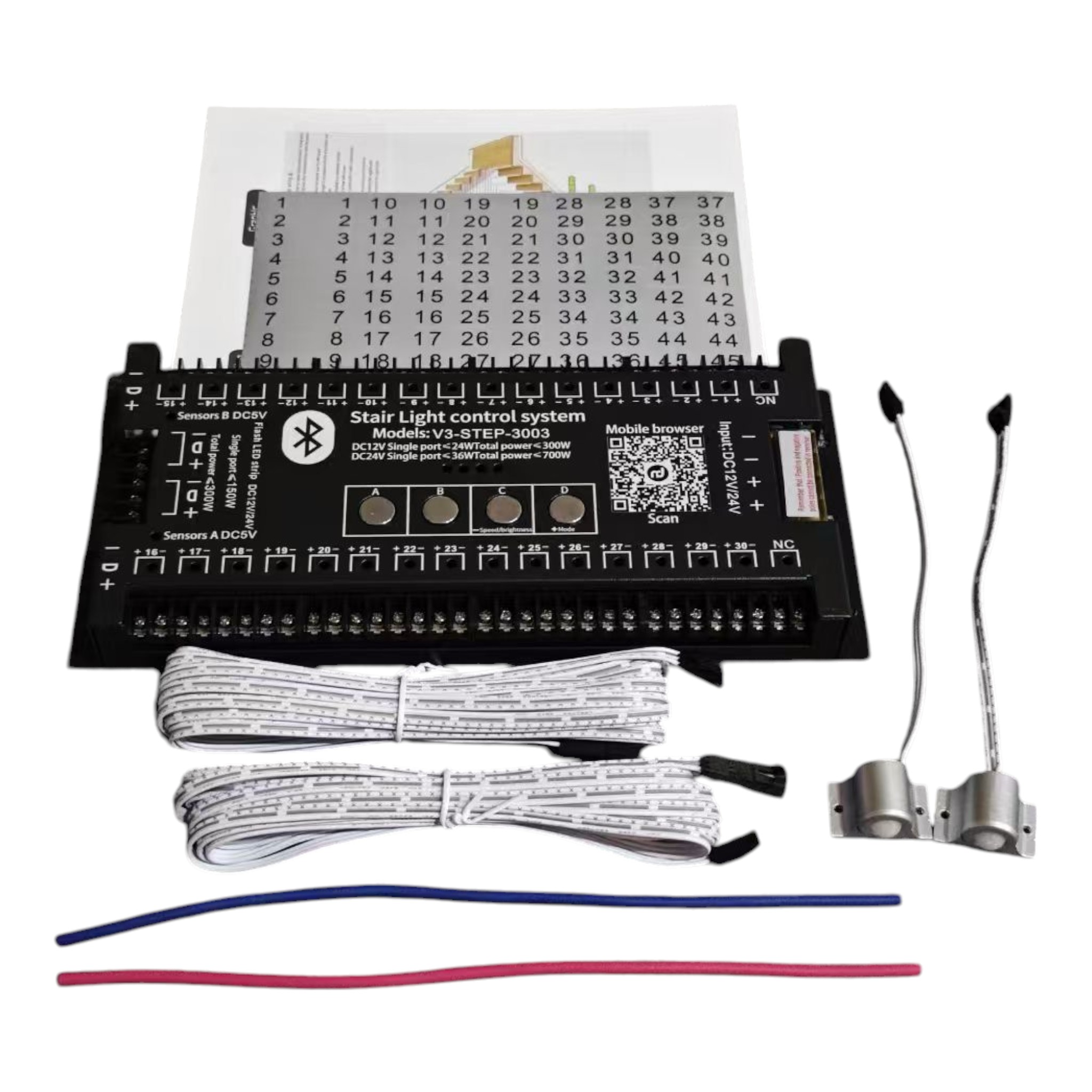

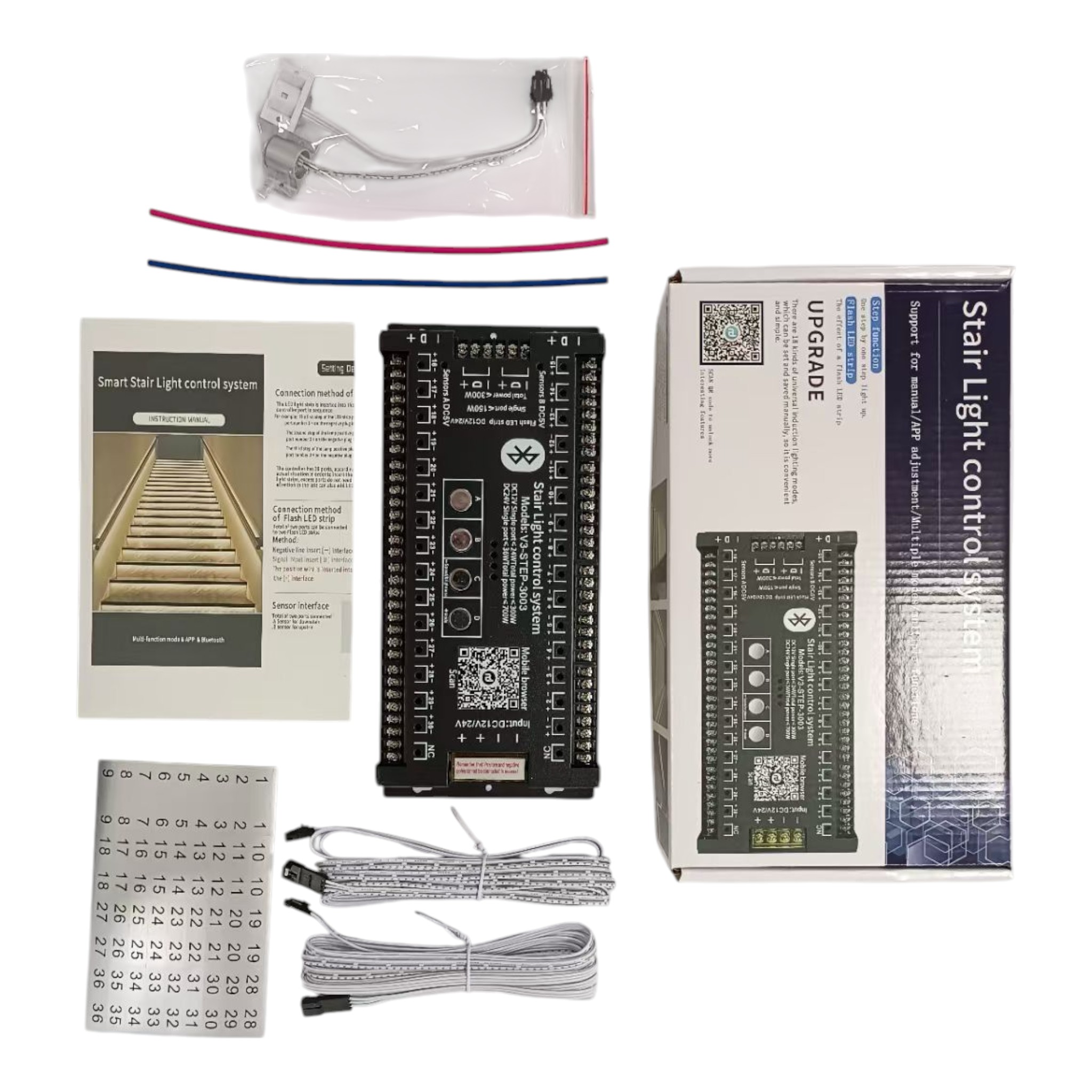

TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
$55.00
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
Product Specifications
| Model Number | V3-STEP-3003 |
|---|---|
| Input Voltage | DC 12W/ 24W |
| Power Voltage | AC180-260V |
| Stairs Step power | Single Circuit 12V-24V
Single Circuit 24W-36W |
| Output Line Length | 5 meters + 5 meters |
| Product Size | 250mm x 115mm x 26mm |
| Output Voltage | DC 12W/24W |
| Certification | CE |
| Side Line Power | Controllable 1024 pixels |
| Sensors | 2 (DC-5V) |
| Batteries | No |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
