THREE-IN-ONE UPGRADE STAIR CONTROL SYSTEM (Model 4001)
$208.00
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
📱 Adjustable Settings via APP:
-
Adjust light brightness
-
Adjust number of steps
-
Adjust length of the light chaser
-
Adjust light bar speed
-
Set automatic light-off time
-
Enable fixed timer operation
🎨 Lighting Modes Available:
-
Flowing Light Mode
-
Step-by-Step Light Mode
-
Full Light Mode
-
Follow Light Mode
-
Auto Mode
-
Cyclic Light Mode
⚙️ Product Parameters:
-
Input Voltage: AC220V
-
Output Voltage: 24V 16.6A
-
Step Power: Single channel 24V = 36W
-
Chasing Light (Flow) Capacity: Up to 1200 pixels
-
Sensor Heads: 2 units (24V)
-
Product Features:
-

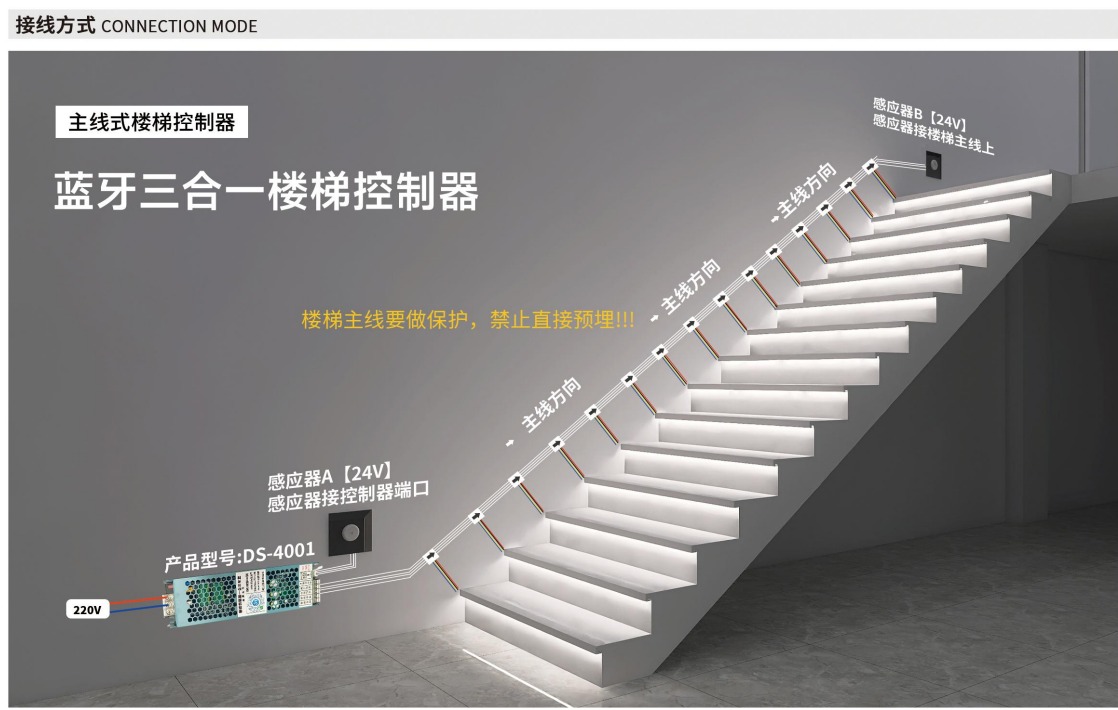

Bus Wiring:
➔ Only one bus line needed. Small branch lines easily connect to stair lights.
➔ Sensor head [B] connects directly to the main bus for more convenient installation. -
Built-in Power Supply:
➔ Transformer and controller are integrated into one unit.
➔ Direct AC220V input — faster, simpler setup. -
Stepping Function:
➔ Lights illuminate step-by-step when sensing people. -
Chasing Light (Marquee) Function:
➔ Lights flow in a chasing pattern when motion is detected. -
Bluetooth Control:
➔ Adjust and set all functions via a WeChat mini-program on your mobile phone. -
High Power Output:
➔ Single-channel stair light: 36W
➔ 1-channel chasing light supported
➔ Works with 24V-LED lighting
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products
PROGRAMMABLE STAIR LIGHT CONTROLLER(model 1002)
Programmable Stair Light Controller
Scope of Application:
Ideal for indoor staircases and similar step-lighting installations.
Features:
-
Step-by-Step Lighting: Automatically illuminates each stair step as you move.
-
Motion Sensing: Activates lighting in sequence based on movement.
Adjustment Functions:
-
Lighting Pixels: Adjustable number of illuminated steps.
-
Lighting Speed: Customizable speed for the step lighting effect.
TWO IN ONE ENHANCED ANTI SHORT CIRCUIT STAIRS LIGHT CONTROLLER(model s450)
Stair Light Control System
Scope of Application:
Designed for indoor staircases, enhancing safety and ambiance with intelligent lighting control.
Features:
-
Step Lighting: Automatically illuminates each step in sequence as a person uses the stairs, providing a visually appealing and safe experience.
-
Motion Sensing: Detects movement and activates the lights step by step.
Short Circuit Protection Design:
Built with a durable protection mechanism that safeguards the controller, preventing damage from short circuits at the ports.
Adjustment Functions:
-
Lighting Pixels: Allows customization of the number of lights or steps to be activated.
-
Lighting Speed: Enables users to set the speed of light transitions according to their preference.
TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
TWO-IN-ONE STAIR LIGHT CONTROL SYSTEM (Model 2001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
⚙️ Product Parameters:
-
Power Voltage: DC 12V / 24V
-
Controllable Steps: 32 channels
-
Step Power Output:
➔ 12V = 24W per step
➔ 24V = 30W per step -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 pieces
-
Product Size:
➔ 114mm × 96mm × 26mm
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-VO1
Model No.: ND-PM-VO1
Scope of Application:
Ideal for indoor stairs, handrails, passageways, and more.
Features:
-
Light Strip Options:
Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for a variety of lighting choices. -
Adjustment Features:
Customize the length, chasing speed, brightness, and dual-color settings of the chasing strip light to suit your preferences. -
Light Tracing Function:
Senses motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM
THE MOBILE APP CAN SET MULTIPLE LIGHTING MODE
Scope of Application: Perfect for indoor stairs, handrails, passageways, and more. Features:- Light Strip Options: Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for versatile lighting options.
- Adjustment Features: Customize your lighting experience by adjusting the length, chasing speed, brightness, and dual-color settings of the chasing strip light.
- Light Tracing Function: The system senses motion and activates the side strip light to follow the movement, creating a flowing water-like effect with running and chasing light patterns.
This version highlights the key features in a clean and professional manner. Let me know if you need further adjustments!
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM(model GY220B)
- Used for indoor stairs, handrails, or passageways, etc.
- Can set the length/chasing speed/brightness
- The power supply and controller are integrated, and the controller can be directly connected to the 220 voltage, making installation more convenient
- Sensing the motion, the side line strip to follow the light in the form of flowing water, with the function of a running and chasing
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2 IN 1 – 5 Wires mainline version(model GY220)
Stair Light Control System
Scope of Application
Ideal for indoor use on stairs, handrails, and passageways, providing smart, responsive, and visually appealing lighting.
Features
Simplified Wiring
Designed to reduce installation complexity — only one 3-wire mainline is required, allowing easy connection of stair step strip lights without the need for intricate cabling.
Built-in Power Supply
The controller and power supply are integrated into a single unit. It connects directly to 220V, ensuring a faster and cleaner installation process.
Advanced Light Chasing Function
This system allows customization of lighting delay, timing, and brightness levels. Paired with a dual-color light strip, it offers the ability to switch between different color temperatures, enhancing both functionality and ambiance.
