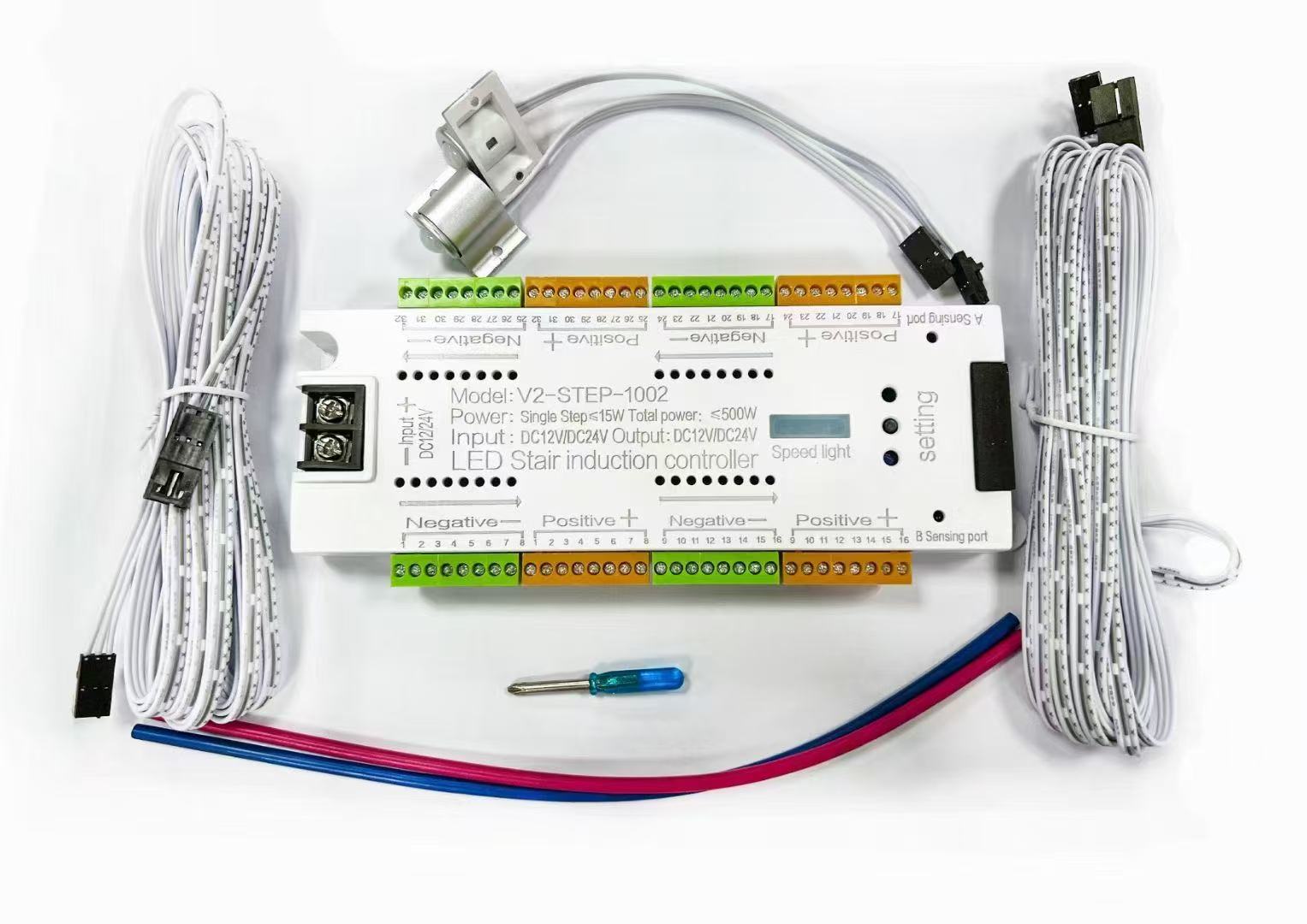

PROGRAMMABLE STAIR LIGHT CONTROLLER(model 1002)
$32.00
Programmable Stair Light Controller
Scope of Application:
Ideal for indoor staircases and similar step-lighting installations.
Features:
-
Step-by-Step Lighting: Automatically illuminates each stair step as you move.
-
Motion Sensing: Activates lighting in sequence based on movement.
Adjustment Functions:
-
Lighting Pixels: Adjustable number of illuminated steps.
-
Lighting Speed: Customizable speed for the step lighting effect.

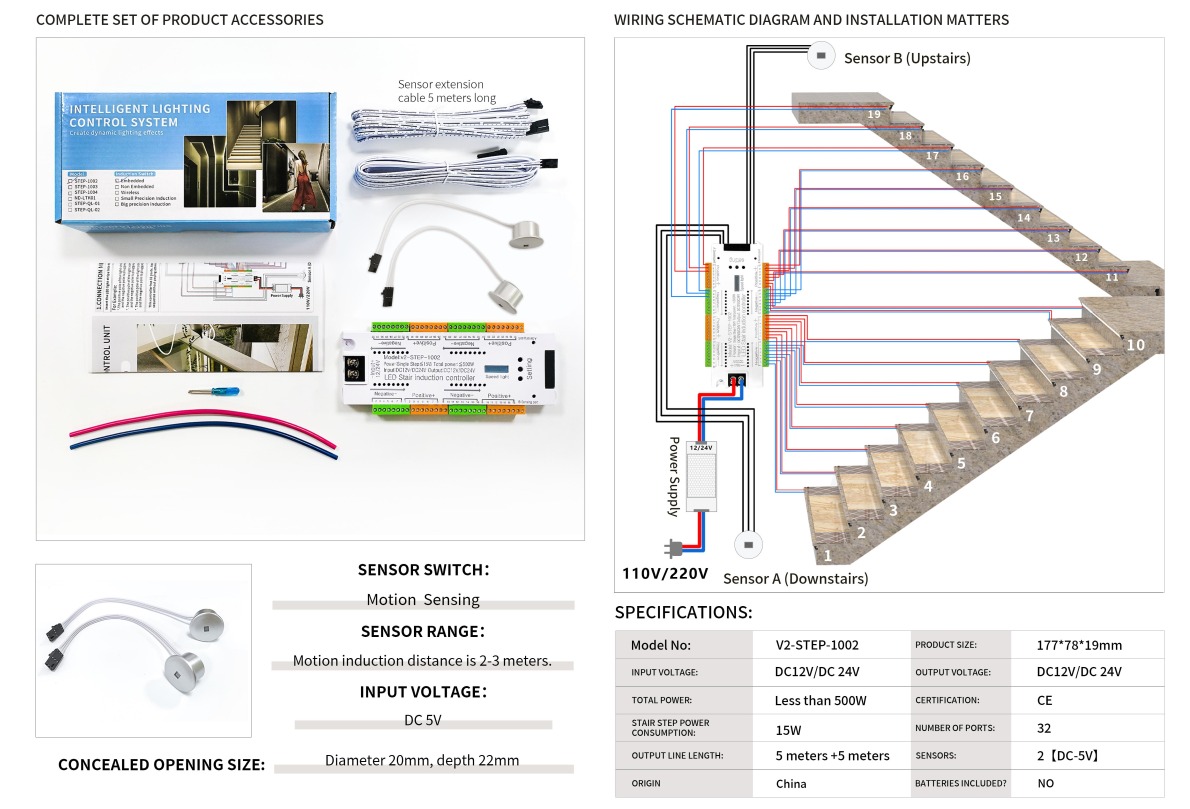

Product Specifications
| Model Number | V2-STEP-1002 |
|---|---|
| Input Voltage | DC12/DC 24W |
| Total power | Less than 500W |
| Power Consumption | 15W |
| Output Line Length | 5 meters + 5m |

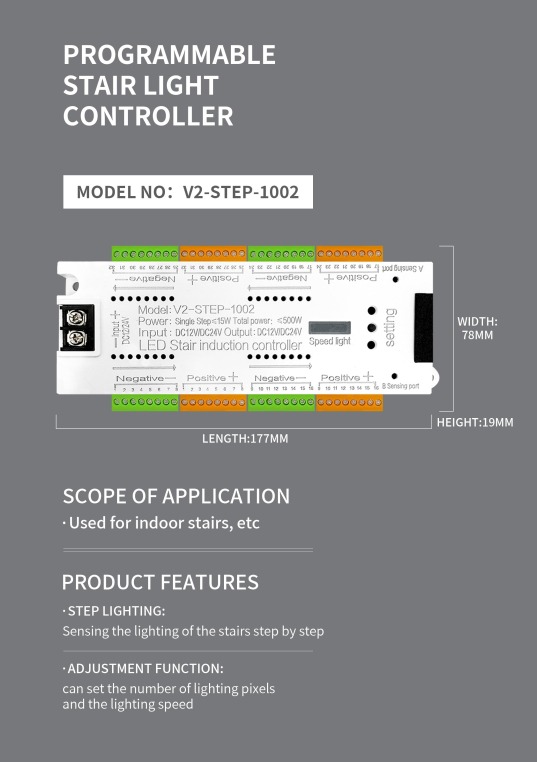

| Product Size | 117mm x 78mm x 19mm |
| Output Voltage | DC 12V/DC 24W |
| Certification | CE |
| Number of Ports | 32 |
| Sensors | 2 (DC-5V) |
| Batteries | No |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products
FULL BRIGHT CLASSISC STAIR CONTROLLER: 2 Line Version (model QL1)
Features:
Step Lighting:
Upon motion detection, all stair steps illuminate simultaneously, providing clear visibility and enhancing nighttime safety.
Simplified Wiring:
Say goodbye to complicated installations. The system requires only a single 2-wire main line, making setup easier and more efficient.
Light Chasing Function:
With motion sensing, the side strip lights create a flowing effect—lighting up step-by-step in a running and chasing pattern, delivering a visually captivating and modern touch to your stairs.
TWO IN ONE ENHANCED ANTI SHORT CIRCUIT STAIRS LIGHT CONTROLLER(model s450)
Stair Light Control System
Scope of Application:
Designed for indoor staircases, enhancing safety and ambiance with intelligent lighting control.
Features:
-
Step Lighting: Automatically illuminates each step in sequence as a person uses the stairs, providing a visually appealing and safe experience.
-
Motion Sensing: Detects movement and activates the lights step by step.
Short Circuit Protection Design:
Built with a durable protection mechanism that safeguards the controller, preventing damage from short circuits at the ports.
Adjustment Functions:
-
Lighting Pixels: Allows customization of the number of lights or steps to be activated.
-
Lighting Speed: Enables users to set the speed of light transitions according to their preference.
THREE-IN-ONE UPGRADE STAIR CONTROL SYSTEM (Model 4001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
📱 Adjustable Settings via APP:
-
Adjust light brightness
-
Adjust number of steps
-
Adjust length of the light chaser
-
Adjust light bar speed
-
Set automatic light-off time
-
Enable fixed timer operation
🎨 Lighting Modes Available:
-
Flowing Light Mode
-
Step-by-Step Light Mode
-
Full Light Mode
-
Follow Light Mode
-
Auto Mode
-
Cyclic Light Mode
⚙️ Product Parameters:
-
Input Voltage: AC220V
-
Output Voltage: 24V 16.6A
-
Step Power: Single channel 24V = 36W
-
Chasing Light (Flow) Capacity: Up to 1200 pixels
-
Sensor Heads: 2 units (24V)
-
TWO-IN-ONE STAIR LIGHT CONTROL SYSTEM (Model 2001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
⚙️ Product Parameters:
-
Power Voltage: DC 12V / 24V
-
Controllable Steps: 32 channels
-
Step Power Output:
➔ 12V = 24W per step
➔ 24V = 30W per step -
Chasing Light (Flow) Capacity:
➔ Controls up to 1200 pixels -
Sensor Heads: 2 pieces
-
Product Size:
➔ 114mm × 96mm × 26mm
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-1T6
- Light Strip Options: Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for dynamic lighting.
- Adjustment Features: Allows customization of length, chasing speed, brightness, and dual-color settings for the chasing strip light.
- Light Tracing Function: Senses motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2-IN-1 | 2 Wires mainline version(model GY220A)
Stair Light Control System
Scope of Application
Perfectly suited for indoor stairs, handrails, or passageways, delivering safe, stylish, and automated lighting.
Features
Wiring Simplification
No need for complex connections — requires only a single 3-wire mainline, allowing for easy integration of step strip lights.
Built-in Power Supply
Features an integrated power supply and controller, enabling direct 220V connection. This design ensures a neat and convenient installation process.
Adjustment Function
Customize your lighting experience by setting the number of lighting pixels and adjusting the lighting speed to match your desired ambiance or functionality.
INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2 IN 1 – 5 Wires mainline version(model GY220)
Stair Light Control System
Scope of Application
Ideal for indoor use on stairs, handrails, and passageways, providing smart, responsive, and visually appealing lighting.
Features
Simplified Wiring
Designed to reduce installation complexity — only one 3-wire mainline is required, allowing easy connection of stair step strip lights without the need for intricate cabling.
Built-in Power Supply
The controller and power supply are integrated into a single unit. It connects directly to 220V, ensuring a faster and cleaner installation process.
Advanced Light Chasing Function
This system allows customization of lighting delay, timing, and brightness levels. Paired with a dual-color light strip, it offers the ability to switch between different color temperatures, enhancing both functionality and ambiance.
3 COLOR-TEMP FULL BRIGHT STAIR LIGHT CONTROLLER(model QL2)
Stair Light Control System
⚠️ WARNING: Do not use single-color strip lights. Doing so may cause the controller to burn out!
Scope of Application:
Ideal for indoor use on stairs, handrails, passageways, and similar areas requiring automatic lighting.
Features:
Simplified Wiring:
The system eliminates the need for complicated wiring. Only one 3-wire main line is needed to connect all stair step strip lights. Alternatively, some configurations may use a 2-wire main line for simpler setups.
Short Circuit Protection Design:
Built-in protection ensures the controller remains stable and durable, safeguarding the system from port short circuits and extending product life.
Adjustment Function:
Customize your lighting with ease — adjust the lighting delay time and brightness. When using a two-color light strip, you can also switch between color temperatures, allowing for flexible ambiance control.
