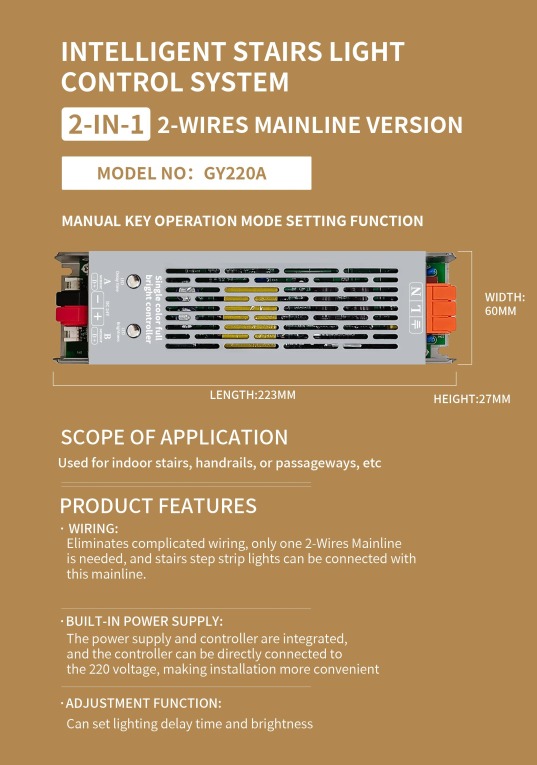

INTELLIGENT STAIRS LIGHT CONTROL SYSTEM: 2-IN-1 | 2 Wires mainline version(model GY220A)
$45.00
Stair Light Control System
Scope of Application
Perfectly suited for indoor stairs, handrails, or passageways, delivering safe, stylish, and automated lighting.
Features

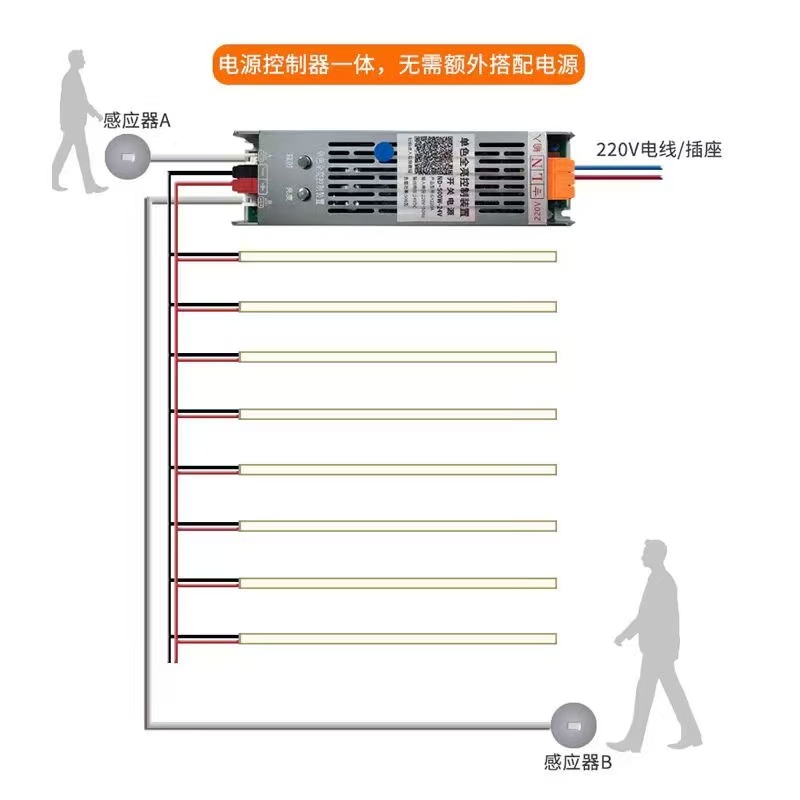

Wiring Simplification

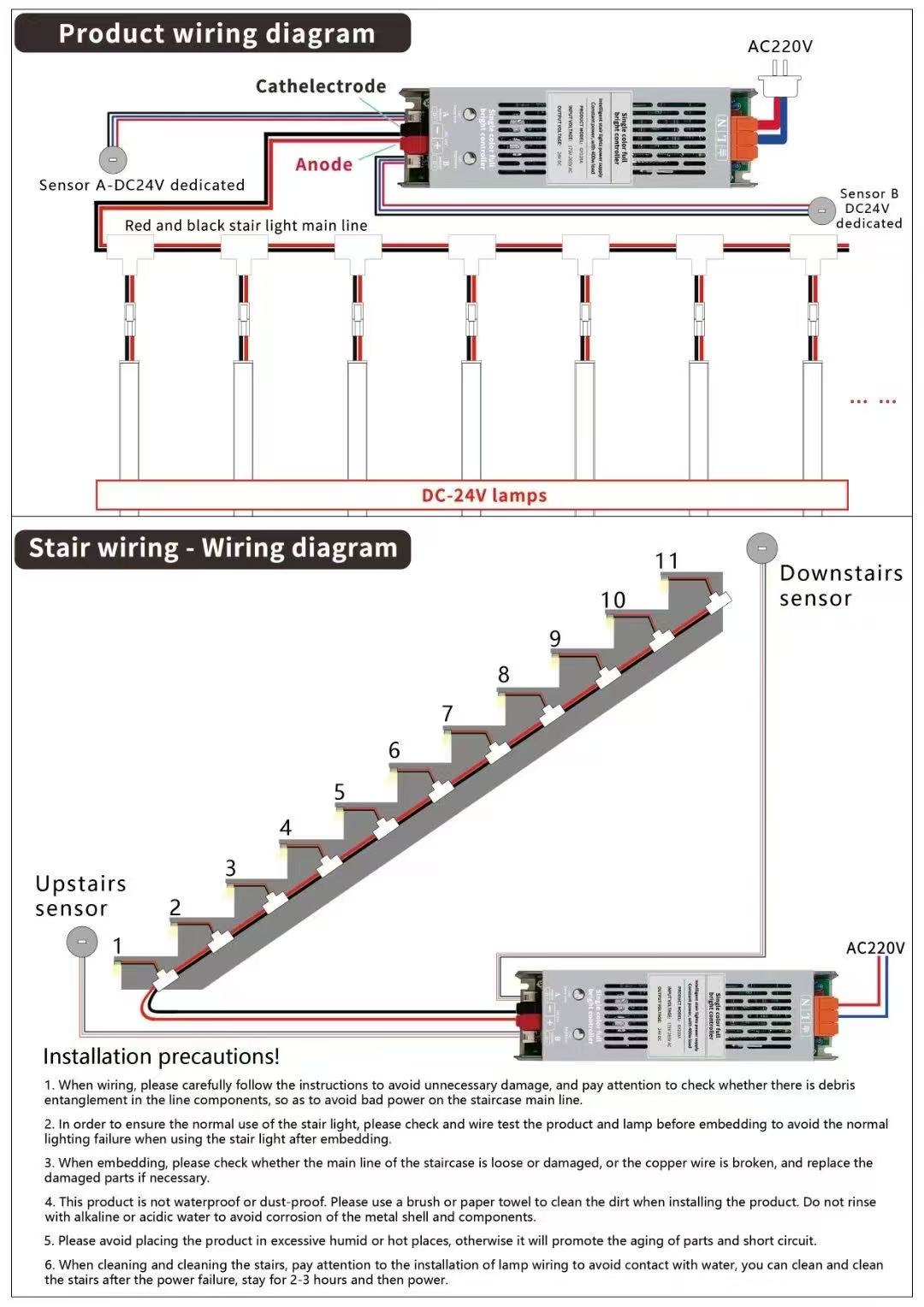

No need for complex connections — requires only a single 3-wire mainline, allowing for easy integration of step strip lights.
Built-in Power Supply
Features an integrated power supply and controller, enabling direct 220V connection. This design ensures a neat and convenient installation process.

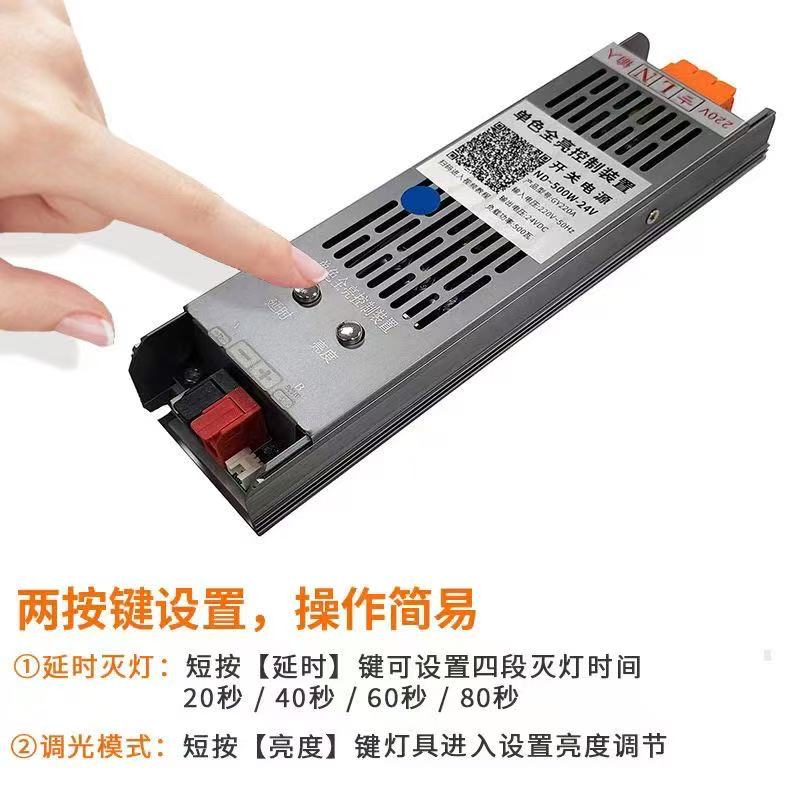

Adjustment Function
Customize your lighting experience by setting the number of lighting pixels and adjusting the lighting speed to match your desired ambiance or functionality.

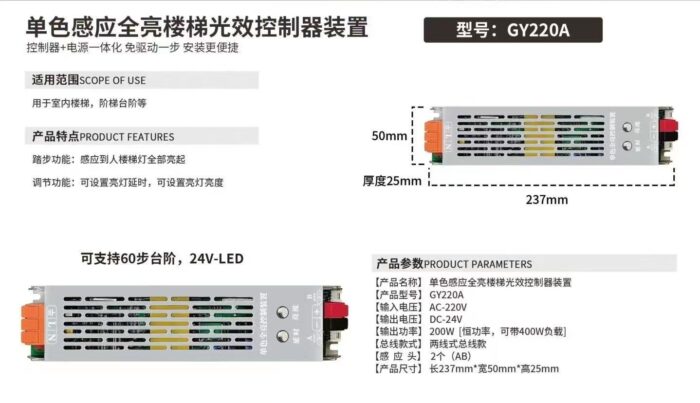

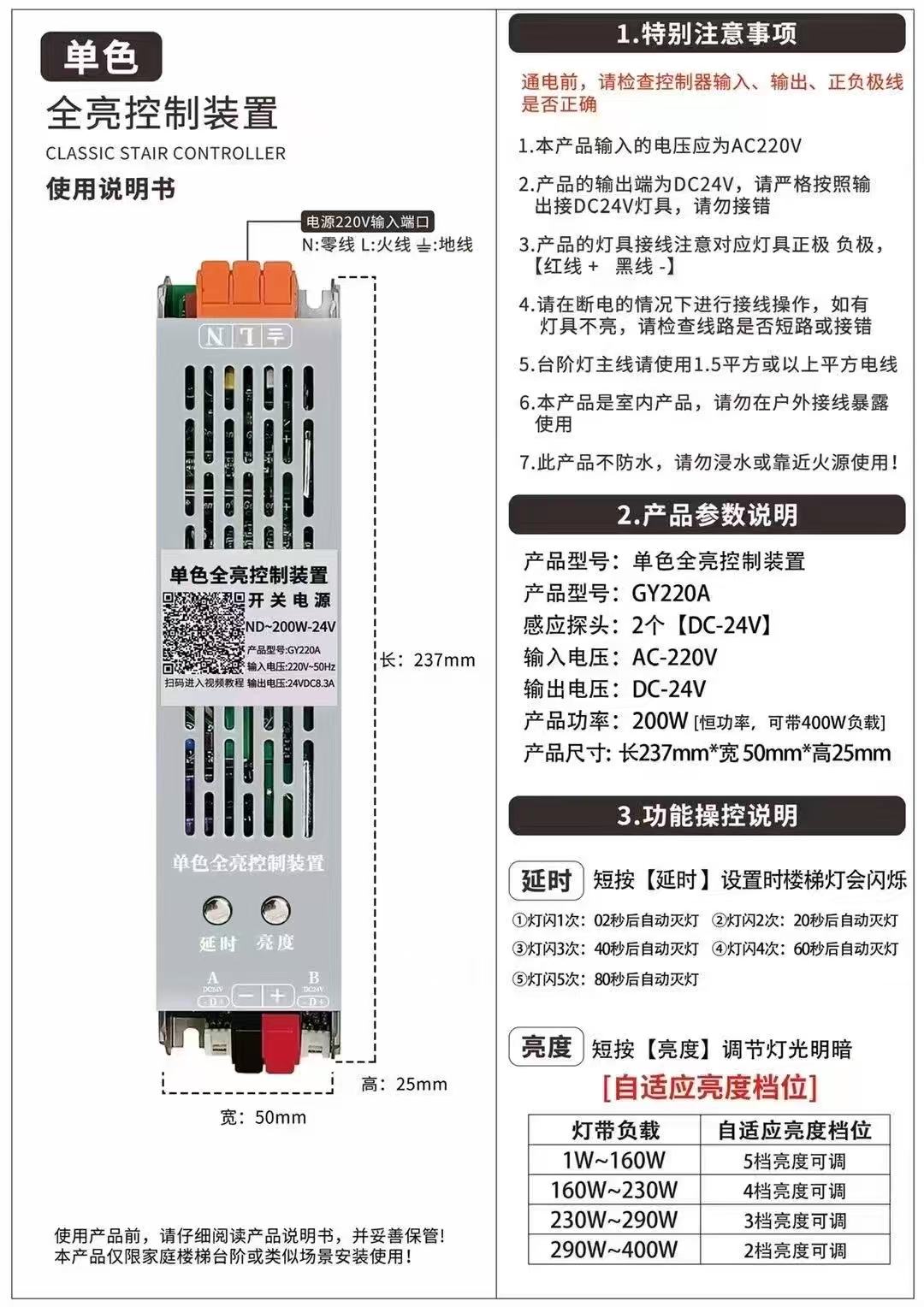

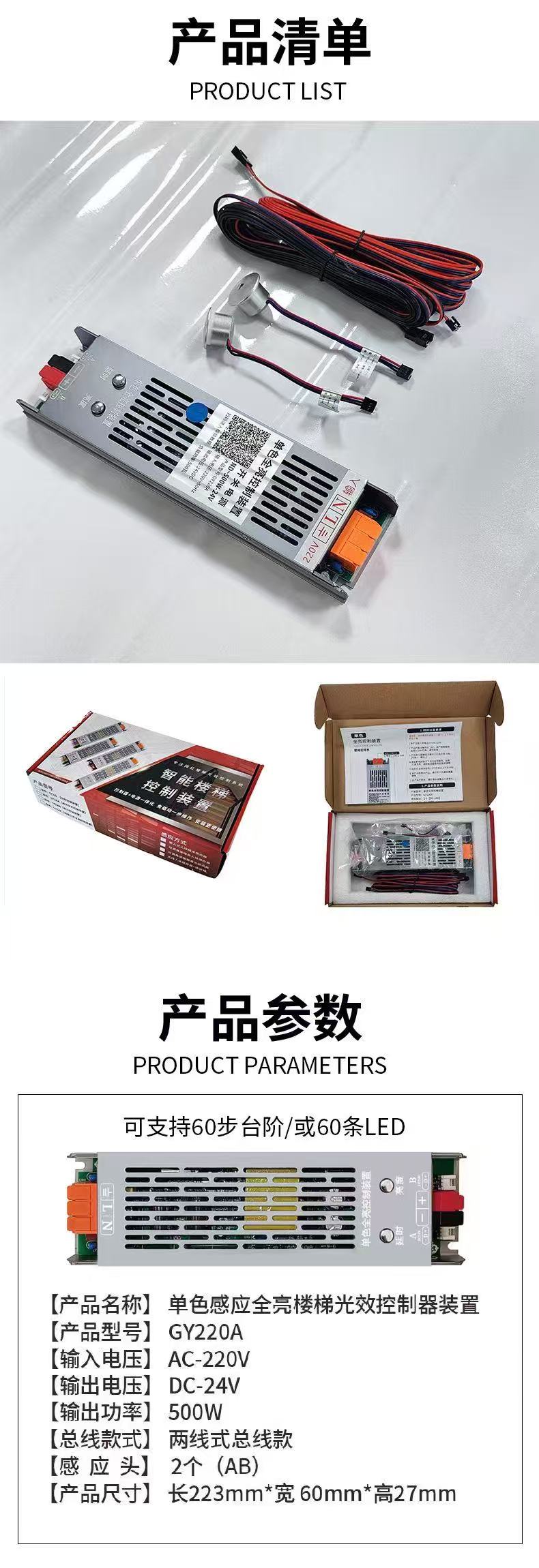

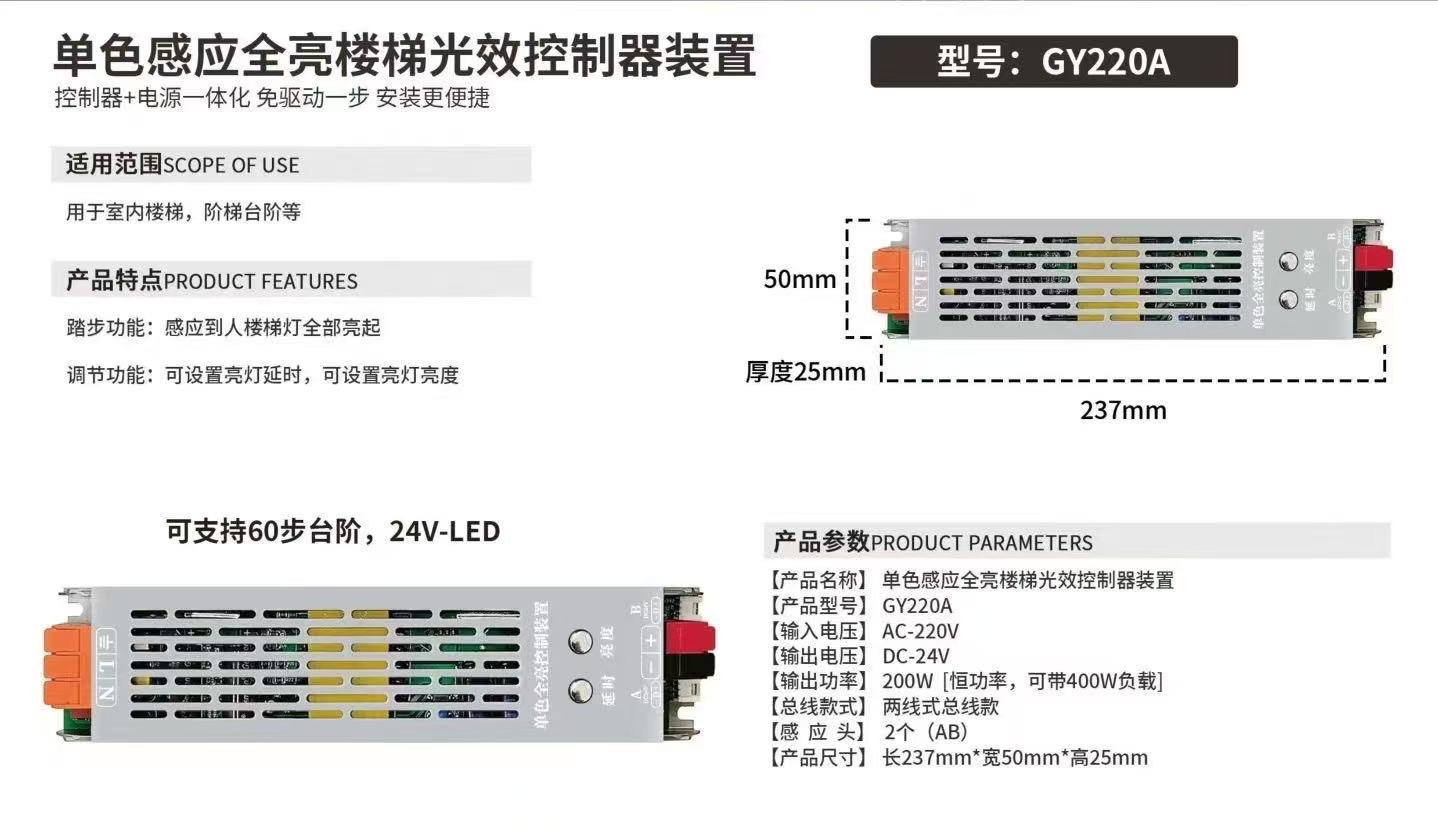

Product Specifications
| Model Number | GY220A |
|---|---|
| Input Voltage | AC 220V |
| Total Power | 24V-Less than 200V |
| Stair Step Power Consumption | 15W |
| Output Line Length | 5 meters |
| Product Size | 223mm x 60mm x 27mm |
| Output Voltage | DC 24W |
| Certification | CE |
| Number of Ports | Max 64 Steps |
| Sensors | 2 (DC-5V) |
| Batteries Included | No |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
Related products

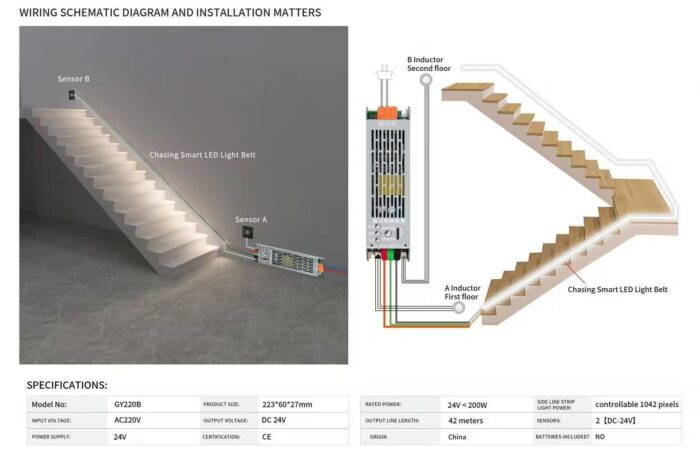

Intelligent Motion Sensor LED Stair Light Kit(model GY220B)
Stair Light Control System
What's in the box 1pc LED Power-free Controller 1 roll 10 meters long Water Flowing effect Strip Light 2pcs PIR Sensor 2pc Sensor Extension CableNew Products: Intelligent stair light controller with motion sensor Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient. Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working) Output: DC 24V Max Power: 400W Product size: 223*60*27mm Sensor A: Used for Upstairs Sensor B: Used for Downstairs 2pcs Extension Cable Length: 5Meters ( Sensor to controller)
Function:
1. Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable) 2. Brightness & Speed is adjustable 3. Pixel Number is adjustable, Max. up to 1024 Pixels. Strip Length Max. up to 42 Meters.
Compatible SPI Led Strip Light:
Working Voltage: 24V LED Type: COB Chips Qty: 360 Chips/meter Length: 2X5M/5M/10M/15M/2X10M Color: Warm White 3000K, Natural White 4000K, Cool White 6000K PCB Width: 10mm Strip Wire: Red Wire--- Postive +24V Green Wire ---- GND signal wire White Wire ---- Negative -24V
NOTE:
You must read the User Manual for Settings when testing. IF not, Only half led strip working. THAT IS NOT Quality Problem!!! Step A: Set Pixel Number, make sure all diodes are working for the whole LED strip. Step B: Set Strp Order by Pressing RGB/RBG button
PROGRAMMABLE STAIR LIGHT CONTROLLER(model LTK01)
Programmable Stair Light Controller
Scope of Application:
Designed for indoor staircases, steps, and similar applications.
Features:
- Controller equipped with DuPont interface. - Supports up to 32 steps, compatible with 12/24V LED systems.
Adjustment Functions:
- Customizable number of illuminated steps. - Adjustable lighting speed.
Product Parameters - Product Name: LED Stair Sensing Control Device - Model**: ND-LTK01 - Input Voltage: DC12V/24V - Output Power: ≤500W (Max) - LED Strip Ports: 32 - Sensors: 2 (A/B) - Product Dimensions: 177*70*19mm Performance as stable as your lifelong partner, rock-solid. Suitable for both export and domestic markets.
TWO IN ONE ENHANCED ANTI SHORT CIRCUIT STAIRS LIGHT CONTROLLER(model s450)
Stair Light Control System
Scope of Application:
Designed for indoor staircases, enhancing safety and ambiance with intelligent lighting control.
Features:
-
Step Lighting: Automatically illuminates each step in sequence as a person uses the stairs, providing a visually appealing and safe experience.
-
Motion Sensing: Detects movement and activates the lights step by step.
Short Circuit Protection Design:
Built with a durable protection mechanism that safeguards the controller, preventing damage from short circuits at the ports.
Adjustment Functions:
-
Lighting Pixels: Allows customization of the number of lights or steps to be activated.
-
Lighting Speed: Enables users to set the speed of light transitions according to their preference.
TWO IN ONE INTELLIGENT STAIR LIGHT CONTROL SYSTEM(model 3003)
Stair Light Control System
Scope of Application:
Ideal for use on indoor staircases, enhancing both safety and aesthetics with smart lighting.
Features:
-
Step Lighting: Lights up each stair sequentially as a person ascends or descends.
-
Motion Sensing: Detects motion and triggers step-by-step illumination for a guided lighting experience.
Chasing Lighting Effect:
Upon sensing motion, the light strip activates in a flowing sequence, creating a dynamic “chasing light” effect that follows the direction of movement.
Adjustment Functions:
-
Lighting Pixels: Configure the number of steps/lights activated.
-
Lighting Speed: Customize how fast the lights respond and flow.
THREE-IN-ONE UPGRADE STAIR CONTROL SYSTEM (Model 4001)
Scope of Use:
-
Indoor stairs
-
Steps
-
Handrails
-
Aisles
📱 Adjustable Settings via APP:
-
Adjust light brightness
-
Adjust number of steps
-
Adjust length of the light chaser
-
Adjust light bar speed
-
Set automatic light-off time
-
Enable fixed timer operation
🎨 Lighting Modes Available:
-
Flowing Light Mode
-
Step-by-Step Light Mode
-
Full Light Mode
-
Follow Light Mode
-
Auto Mode
-
Cyclic Light Mode
⚙️ Product Parameters:
-
Input Voltage: AC220V
-
Output Voltage: 24V 16.6A
-
Step Power: Single channel 24V = 36W
-
Chasing Light (Flow) Capacity: Up to 1200 pixels
-
Sensor Heads: 2 units (24V)
-
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-VO2
Scope of Application:
Ideal for indoor stairs, handrails, passageways, and more.
Features:
-
Light Strip Options:
Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for versatile lighting customization. -
Adjustment Features:
Customize your lighting with adjustable length, chasing speed, brightness, and dual-color settings of the chasing strip light. -
Light Tracing Function:
The system detects motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
INTELLIGENT RUNNING LIGHT CONTROL SYSTEM: ND-PM-VO1
Model No.: ND-PM-VO1
Scope of Application:
Ideal for indoor stairs, handrails, passageways, and more.
Features:
-
Light Strip Options:
Supports Monochrome LED, Magic RGB, Two-Color LED, and multiple running light effects for a variety of lighting choices. -
Adjustment Features:
Customize the length, chasing speed, brightness, and dual-color settings of the chasing strip light to suit your preferences. -
Light Tracing Function:
Senses motion and activates the side strip light to follow in a flowing water-like pattern, with running and chasing light effects.
