600W High-Power Split-Type PLC Intelligent Staircase Light Controller (model FT01)
$35.00
Stair Light Control System

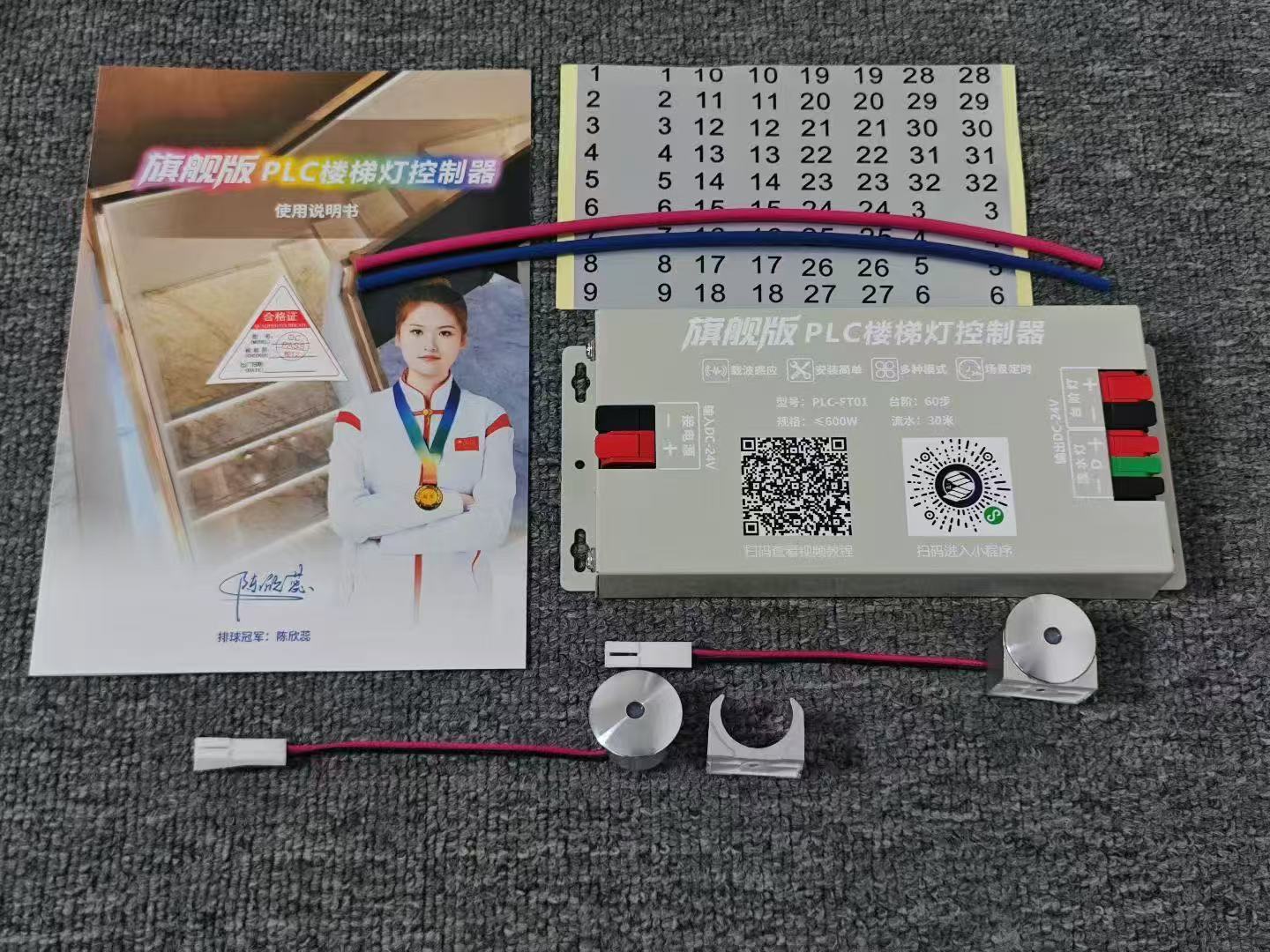

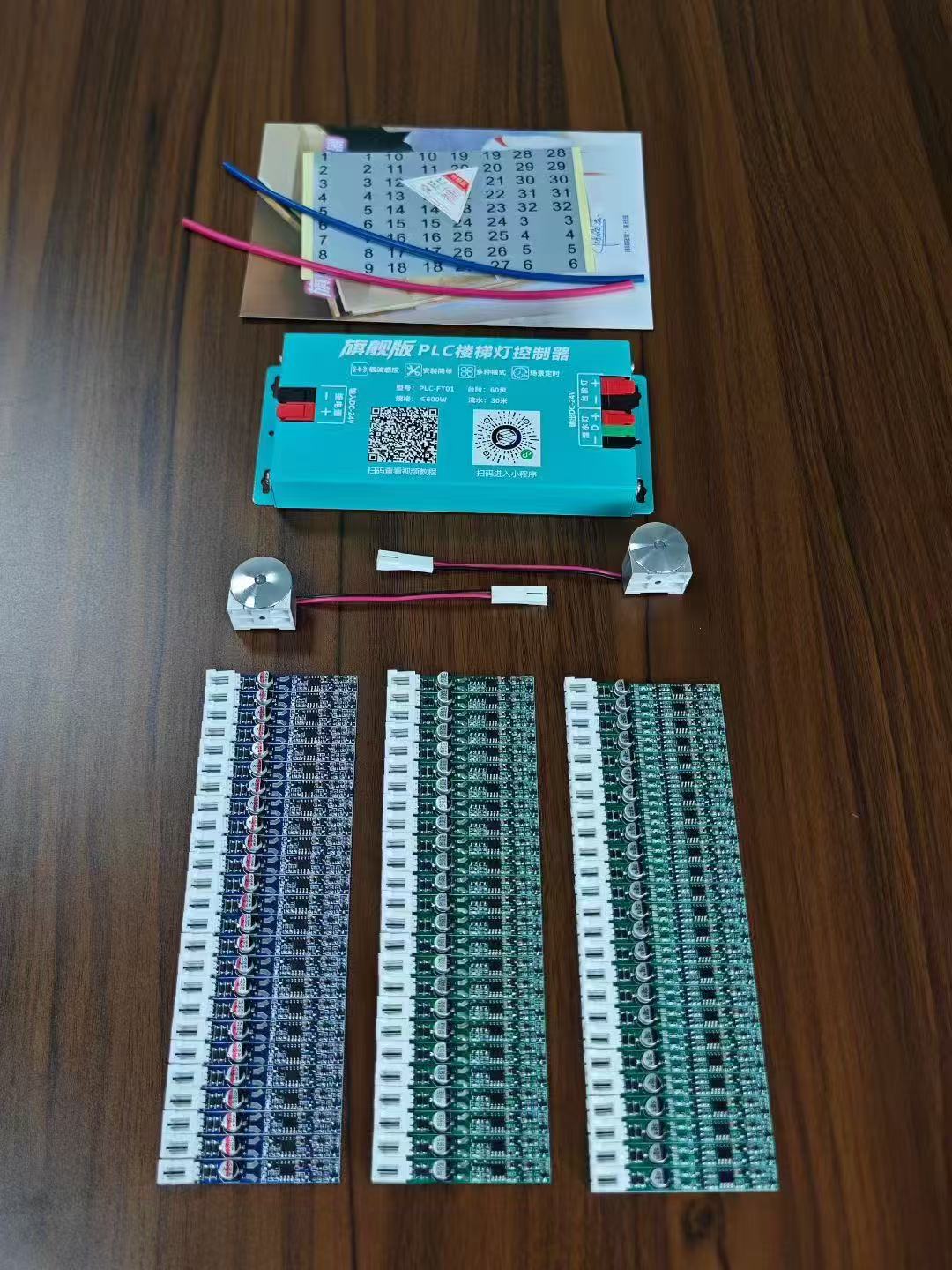

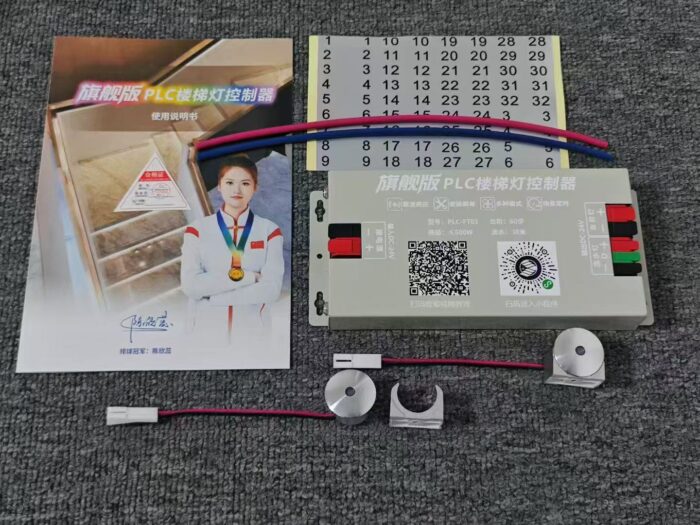

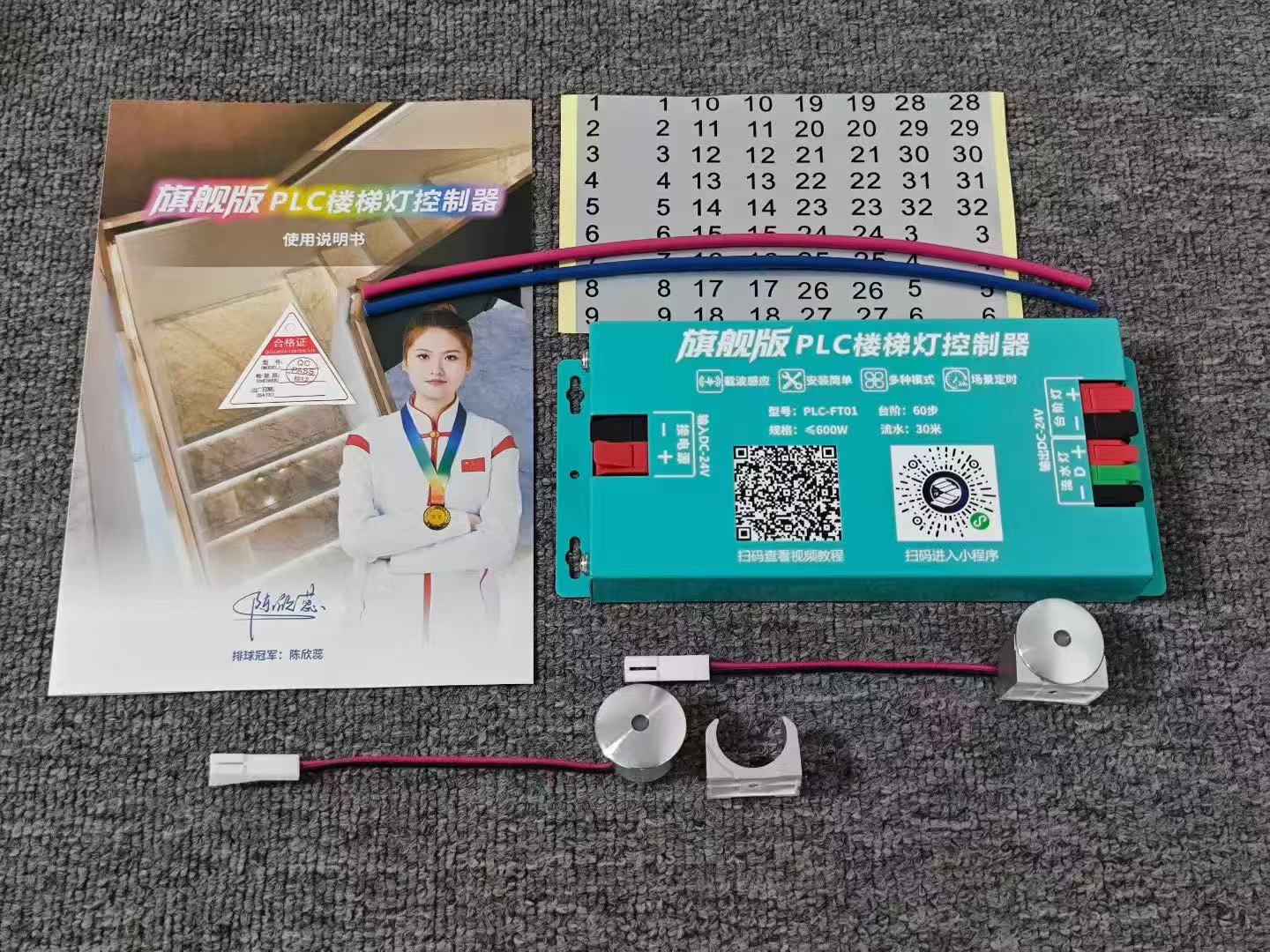

What’s in the box
1pc LED Power-free Controller
2pcs PIR Sensor

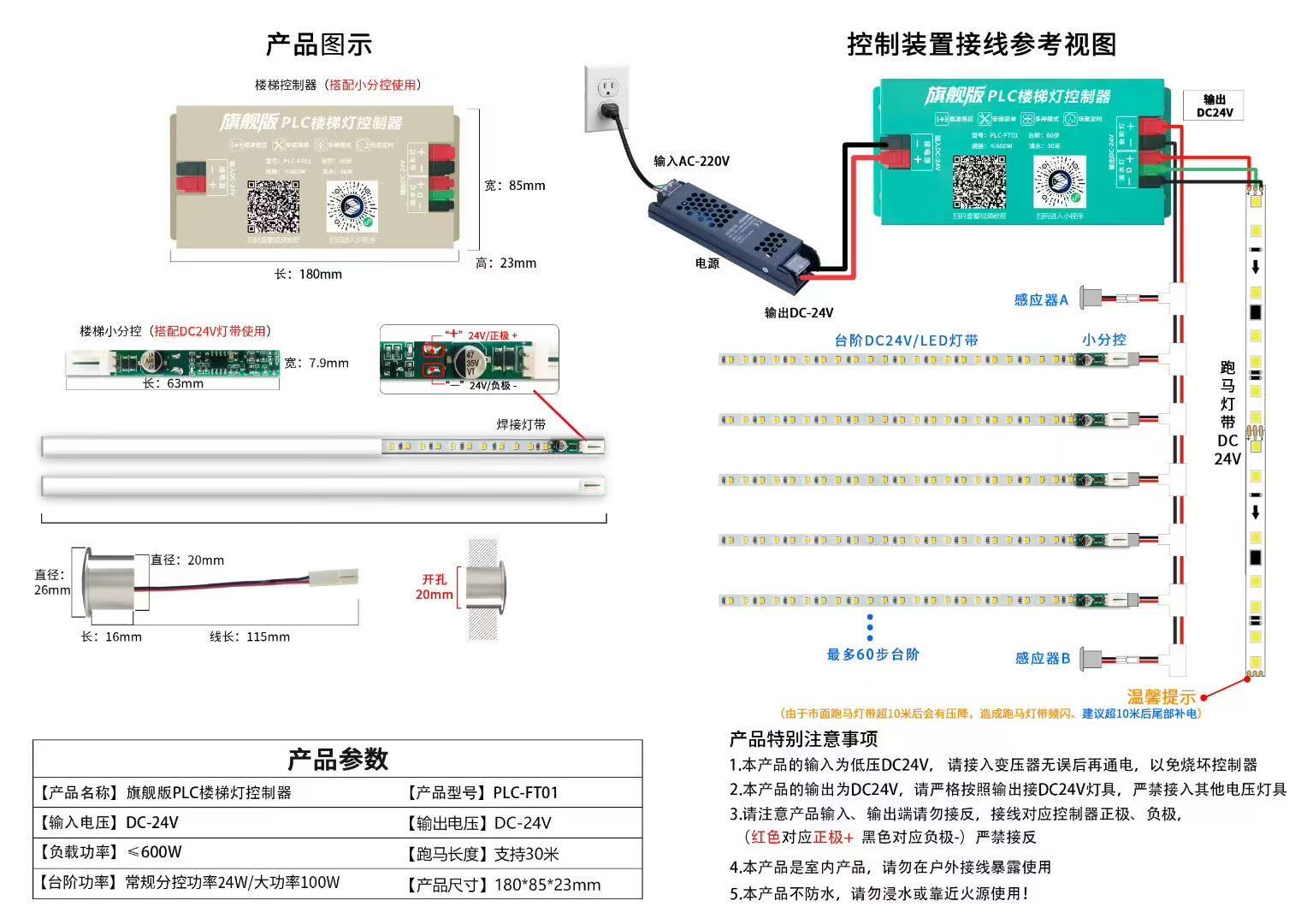

Product Specifications
| Model Number | FT01 |
|---|---|
| Input Voltage | DC 24W |
| Total Power | 600V |
| Stair Step Power Consumption | 24W/100W |
| Maximum Number of Steps | 60 |
| Product Size | 180mm x 85mm x 23mm |
| Output Voltage | DC 24W |
| Certification | CE |
| Length of Running Light | 30 Meters |
| Sensors | 2 (DC-5V) |
| Batteries Included | No Need |
You must be logged in to post a review.
Free Shipping
Carrier: EMS
Cost: Free
Process Time 2-10 Working days
Shipping Time 2-5 weeks
